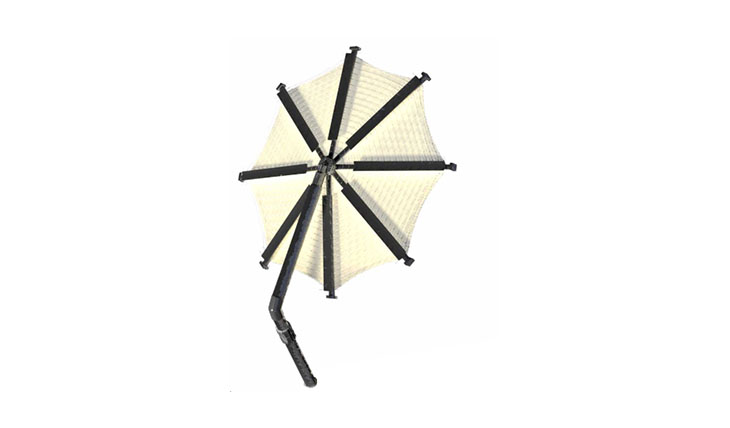

1m Ka-Band High Compaction Ratio Reflector Antenna

<img width=730 height=428 src=https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured.jpg class="img-responsive wp-post-image" alt loading=lazy srcset="https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured.jpg 730w, https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured-300x176.jpg 300w, https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured-350x205.jpg 350w, https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured-700x410.jpg 700w, https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured-240x140.jpg 240w, https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured-280x165.jpg 280w, https://satcatalog.com/wp-content/uploads/comm_reflect_ant-L3Harris-Corporation-1m-Ka-Band-High-Compaction-Ratio-Reflector-Antenna-featured-600x352.jpg 600w" sizes="(max-width: 730px) 100vw, 730px">

Overview

Description

L3Harris’ High Compaction Ratio (HCR) reflector antenna with 1-meter reflector and feed fits in a 2U CubeSat volume or a 5-meter reflector in less than a quarter of an Evolved Expendable Launch Vehicle (EELV) Secondary Payload Adapter (ESPA) class satellite.

The HCR reflector antenna is designed for high-frequency, high-gain antenna performance up to 40 gigahertz. The HCR reflector antenna has a fast production turnaround that supports SmallSat constellation development.

L3Harris applies fabrication and surface-shaping processes that are based on 40 years of reflector heritage to streamline production and minimize development risk for our customers.

Datasheet

L3Harris Corporation – 1m Ka-Band High Compaction Ratio Reflector Antenna

Properties

Overview

Name	1m Ka-Band High Compaction Ratio Reflector Antenna
Manufacturer	L3Harris Corporation
Subsystem	Communication
Classification	Reflector Antenna
Sub-classification	Mesh Antenna
Form Factor	CubeSat

Vendor Details

Vendor Overview

Vendor Name	L3Harris Corporation
Vendor Website	https://www.harris.com/
Vendor Locations	Australia, Brazil, Canada, France, Germany, Hong Kong, India, Italy, Japan, Malaysia, Oman, Philippines, Qatar, Romania, Saudi Arabia, Singapore, Taiwan, United Arab Emirates, United Kingdom, United States

Request Information

Vendor Request for Information Form

Name *

Email *

Country *

Would you like suggestions about similar products/services from other suppliers?

Sign me up!

Inquiry Description *

SPECIFICATIONS

Subsystem	Communication
Classification	Reflector Antenna
Form Factor	CubeSat
Vendor	L3Harris Corporation
Heritage	N/A
Mass	4.0 kg

Component Datasheet
