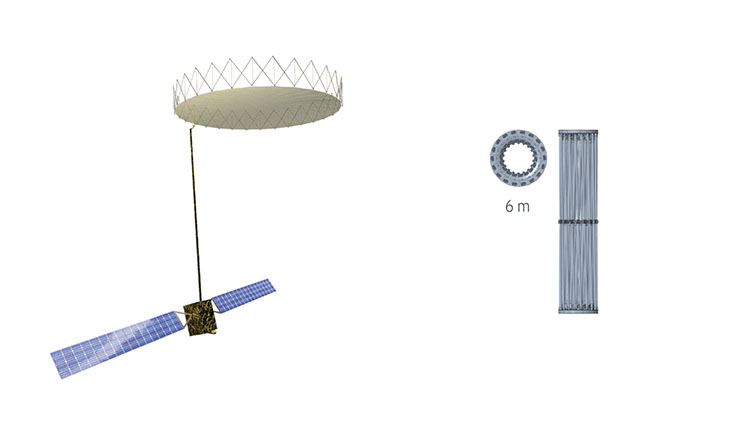

6m Ka-Band Perimeter Truss Reflector
Overview
The Ka-band Perimeter Truss Reflector is available with the Large Telescoping Boom that enables higher focal lengths, lower mass and compact stowage. With boom diameters as small as 20 centimeters, it supports boom lengths up to 50 meters. With precision pointing capability, high stiffness and low mass, it meets the challenging requirements of modern satellite antennas. In addition, its composite tube fabrication, composite lead screw, segment retention detents and latches have been tested and successfully deployed, resulting in a low-risk design.
Looking for more information or want to purchase?
Overview
- Name
- 6m Ka-Band Perimeter Truss Reflector
- Vendor
- L3Harris Technologies
- Subsystem
- Telecom Subsystem
- Component Type
- Reflector Antenna
- Form Factor
- SmallSat
- Heritage
- Yes
Vendor Details
- Name
- L3Harris Technologies
- Website
- https://www.l3harris.com/
Vendor Request for Information Form
Specifications
- Subsystem
- Telecom Subsystem
- Component Type
- Reflector Antenna
- Form Factor
- SmallSat
- Vendor
- L3Harris Technologies
- Dry Mass
- 29.5 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
