X-Band Dual-Circularly-Polarized Antenna

Vendor profile

Overview

COMING SOON : This antenna will be released in Q4 2024. Get in touch now to pre-order!

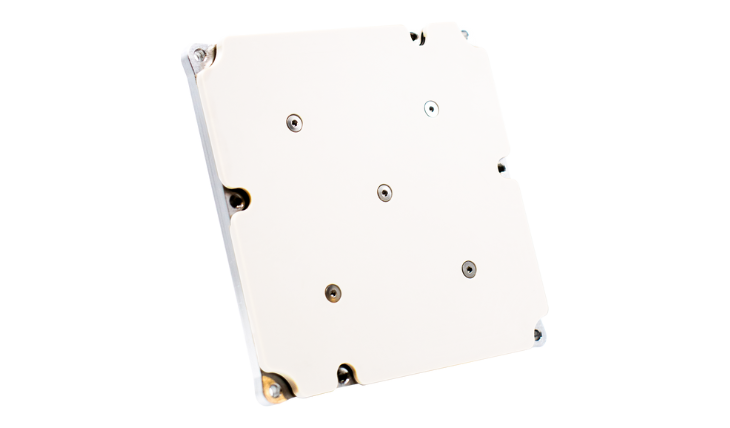

This High-Gain X-Band Dual-Circularly-Polarized Antenna is our latest antenna generation for Data Downlink.

It is a high quality and very compact antenna solution (1U). Thanks to its dual-circular-polarization, the data rate can be doubled compared to the High-gain X-band antenna. This is specifically suitable for compact platforms that need high-data rate payload telemetry, such as Earth Observation missions.

Anywaves High-Gain X-Band Dual-Circularly-Polarized Antenna provides boresight gain more than 16.5 dBi and, if needed, simultaneous dual circular polarization.

The materials and processes used for the assembly have a flight heritage. Outgassing is managed thanks to classical space design rules. The antenna is covered with a PEEK radome painted with a qualified anti-ElectroStatic Discharge (ESD) white paint. The antenna is ESD free and there is no risk that ESD discharge damages the equipment (especially important for polar orbits missions or orbits above 400 Km).

NB : this antenna is compatible with Anywaves Test Cap for X-Band Antennas

More info: https://anywaves.com/products/x-band-dual-circularly-polarized-antenna/

Looking for more information or want to purchase?

Contact now

Overview

Name: X-Band Dual-Circularly-Polarized Antenna
Vendor: Anywaves
Subsystem: Telecom Subsystem
Component Type: Microstrip Antenna
Form Factor: All
Heritage: N/A
Average Lead Time: 6 to 8 months

Details

Frequency Band: From 8 GHz to 8.4 GHz
Polarization: Left and/or Right Hand Circular Polarization
Realized Gain: > 16.5 dBi @ boresight

Vendor Details

Name: Anywaves
Website: https://anywaves.com/
Founded: 2017
Summary: Anywaves is a France-based satellite antenna solutions provider. It is one of the leading providers of innovative antenna solutions in the space industry. Anywaves specializes in the design, development, and manufacturing of high-performance antennas that excel in the demanding space environment. Located in Toulouse, Europe’s space capital, Anywaves provides high-quality off-the-shelf (COTS) and custom space antennas worldwide. The company's expertise and technical know-how merge Radio Frequency and Thermal Mechanical experience to develop state-of-the-art and compact antennas. Anywaves uses premium materials and technologies that guarantee optimal performance throughout the space mission. Committed to excellence, Anywaves works closely with its clients to understand their unique requirements and provide tailored solutions that meet their specific needs. They offer a range of COTS antennas perfectly designed according to space standards as an answer to the satellite constellations market’s needs, such as TT&C, Data Downlink, and GNSS. In addition, Anywaves is also able to cover spatial missions' specific needs by developing custom antennas: launchers antennas, high gain antennas (payload telemetry, inter-satellite link, telecommunications, etc.), wide band antennas (spectrum surveillance, GNSS, LEO PNT, etc.) or any other type of antennas and applications (integrated antennas, active antennas, etc.), as per the customer requirements. Recognized for its technical excellence by leading entities such as Airbus, Thales, and Maxar, Anywaves is committed to delivering unparalleled performance, reliability, and production efficiency. The company is distinguished by its EN 9100 certification, demonstrating its adherence to rigorous quality and performance standards in the aerospace, defense, and space sectors.
