TriScape100
Overview

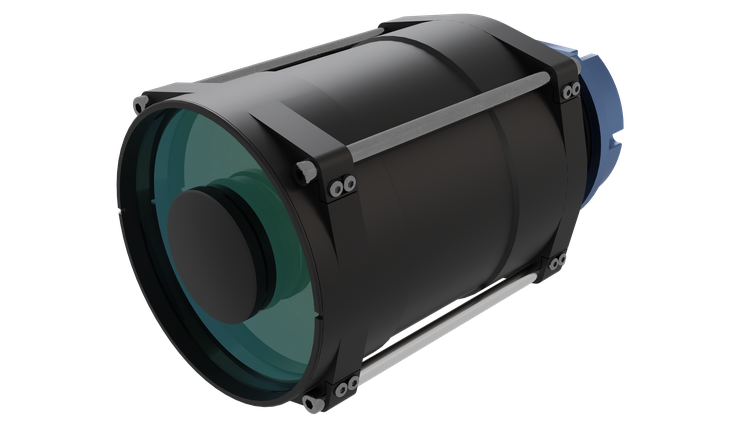

The TriScape100 is offering near real-time change monitoring at an exceptional resolution in a CubeSat form factor. This imager design is based on a 12.6-megapixel CMOS image sensor with integrated Red Green Blue (RGB) Bayer filter in the visible spectral range. The TriScape100 provides snapshot imaging with a frame rate of up to 180 fps to accommodate high definition video.
Looking for more information or want to purchase?
Overview
- Name
- TriScape100
- Vendor
- Simera Sense
- Subsystem
- Payload Subsystem
- Component Type
- Camera/Imager
- Form Factor
- CubeSat
- Heritage
- N/A
Vendor Details
- Name
- Simera Sense
- Website
- https://simera-sense.com/
Vendor Request for Information Form
Specifications
- Subsystem
- Payload Subsystem
- Component Type
- Camera/Imager
- Form Factor
- CubeSat
- Vendor
- Simera Sense
- Dry Mass
- 1.1 kg
- Average Power
- 6.0 W
- Heritage
- N/A
- Status
- In Production
