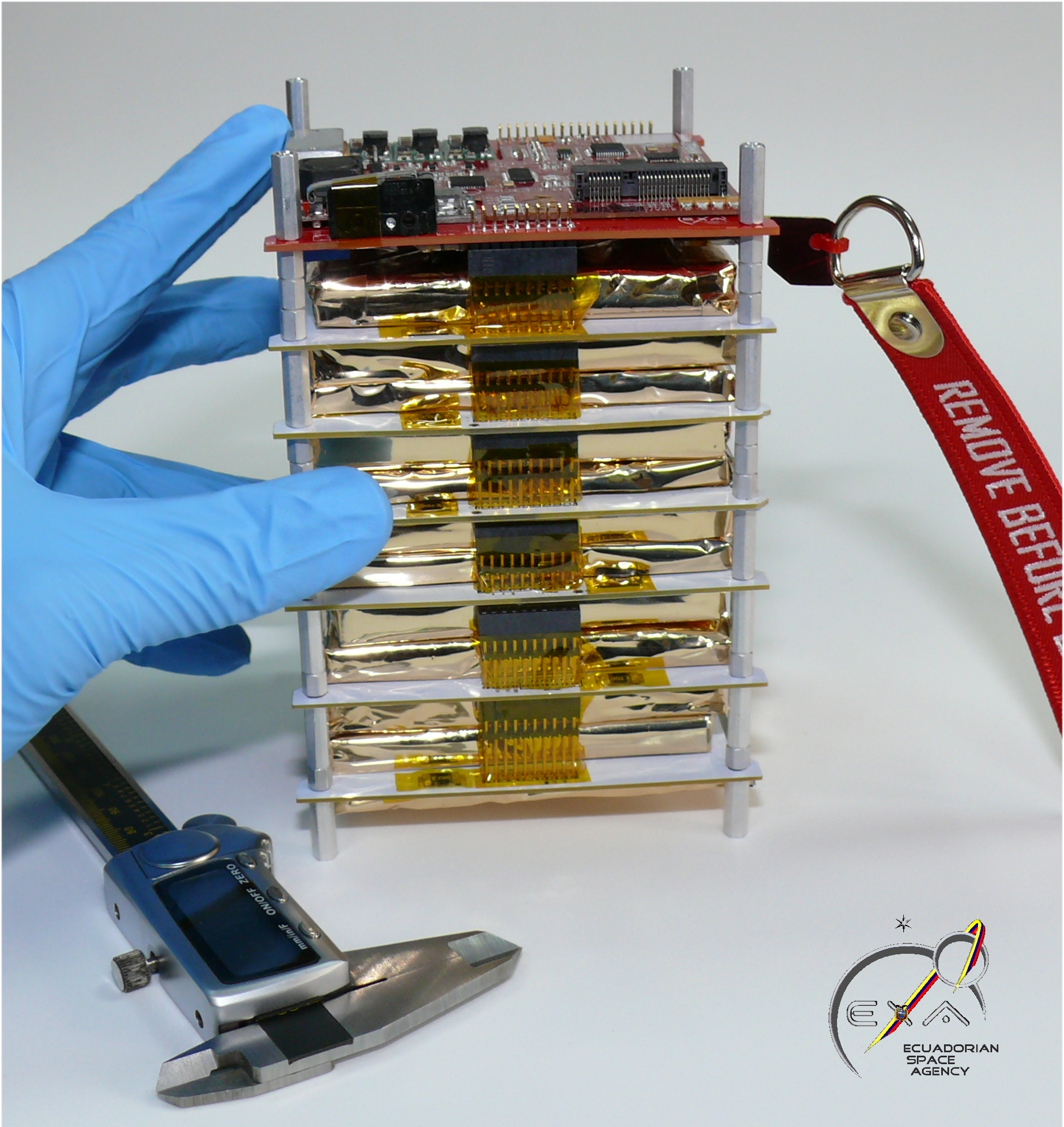

TITAN-1 350Whr High Energy Density Battery Matrix
Overview
The TITAN-1 350Whr High Energy Density Battery Matrix is a 1U-sized power bank module built from 7 battery arrays designed to provide the highest energy capacity and redundancy: Its power capacity is 50 Whr per battery module, giving a total of 350 Whr. For missions from 3U Cubesats to microsatellites. TITAN enables your system to perform longer and better and pack as much power as a microsatellite configuration. All our batteries are fully customizable to your mission’s need in terms of output, cable, connectors or interfaces and options are available as integrated Carbon Nanotubes Thermal Transfer Bus (CN/TTB) shield which allows missions to reuse the spacecraft self-generated heat, and integrated thermal sensor.
Looking for more information or want to purchase?
Overview
- Name
- TITAN-1 350Whr High Energy Density Battery Matrix
- Vendor
- Ecuadorian Space Agency
- Subsystem
- Power Subsystem
- Component Type
- Primary Battery
- Form Factor
- All
- Heritage
- Yes
- Average Cost
- $53,000 to $86,500 USD
- Fiscal Year
- 2022
- Average Lead Time
- 1 to 2 months
Vendor Details
- Name
- Ecuadorian Space Agency
- Website
- http://exa.ec/index-en.html
- Founded
- 2007
- Summary
- EXA is an aerospace research and development institution that, among other things, designs and builds extreme hardware for CubeSats, with more than 7 years of record-setting flight heritage in extreme conditions. EXA’s technology is singular, original, simple, solid and dependable and allows CubeSat developers to use COTS components in order to break the limitations of budget and power typical of the cubesat form factor, the deployable hardware is based over EXA’s unique Active Artificial Muscle technology for a dependable, proven and anti-whiplash deploy of challenging mechanical elements. Flight heritage from 10+ missions backs their technology which is currently in use in European, Asian and Latina merican spacecrafts, and in the challenging U.S. market.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Primary Battery
- Form Factor
- All
- Vendor
- Ecuadorian Space Agency
- Dry Mass
- 1.26 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
