ST-200

Vendor profile

Overview

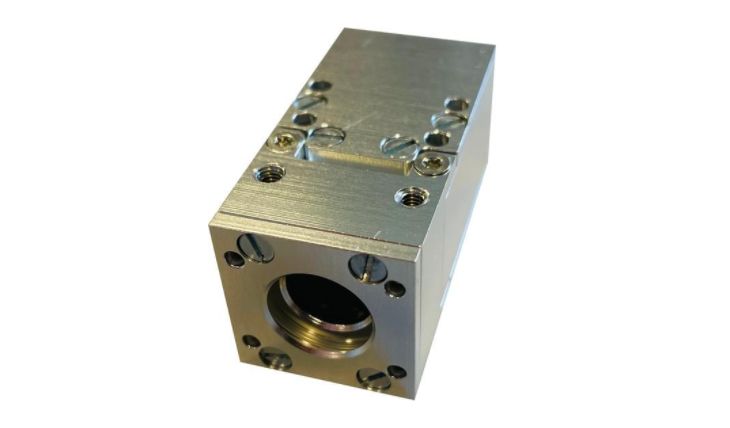

The ST-200 is one of the most successful star trackers in the world. More than 100 devices have been delivered to customers. Built for miniaturized missions and developed in cooperation with Hyperion Technologies B.V. the ST-200 is one of the world’s smallest autonomous star tracker fully suitable for CubeSats or other sophisticated nanosatellites. The ST-200 delivers a full and autonomous attitude solution and is your attitude sensing solution for missions with demanding size and volume restrictions.

Characteristics:
- Accuracy: 10 arcsec (RMS)
- Tracking Update: 5 Hz
- Limiting Magnitude: 6.0
- Data Interfaces: UART (TTL), RS422 (optional)
- Supply Voltage: 3.7-5.0V
- Power Consumption: 650 mW ST200-T and ST200-µD
- Power Consumption: 750 mW ST200-D
- Operating Temperature: -20°C to +40°C
- Dimension (w/o Baffle): 30 x 30 x 38 mm³
- Dimension (w/ 40° Baffle): 50 x 50 x 83 mm³
- Mass (w/o Baffle): 40 g
- Mass (w/ 40° Baffle): 106 g
- Design Life: 5 years LEO
- Radiation Test: 11 krad (Proton 130 MeV source)
- Space Heritage: Yes

Looking for more information or want to purchase?

Contact now

Overview

Name: ST-200
Vendor: Berlin Space Technologies
Subsystem: ACDS Subsystem
Component Type: Star Tracker
Form Factor: SmallSat
Heritage: Yes

Vendor Details

Name: Berlin Space Technologies
Website: https://www.berlin-space-tech.com/
Founded: 2009
Summary: Berlin Space Technologies (BST) is a specialist for small satellite systems and technology. We build on a 30 year tradition of small satellites made in Berlin. BST is vertically integrated and offers reliable and cost-efficient end to end solutions for your mission. Berlin Space Technologies (BST) is a global leader in the NewSpace economy and an experienced supplier of small satellite systems and technologies. Our subsystems fly on more than 100 missions and our state of the art LEOS platform can support the most challenging missions. We are an vertical integrated end to end solution provider. We offer capacity building for emerging space nations, in orbit demonstration for your payloads and together with our partner Azista we can provide entire mega constellations.
