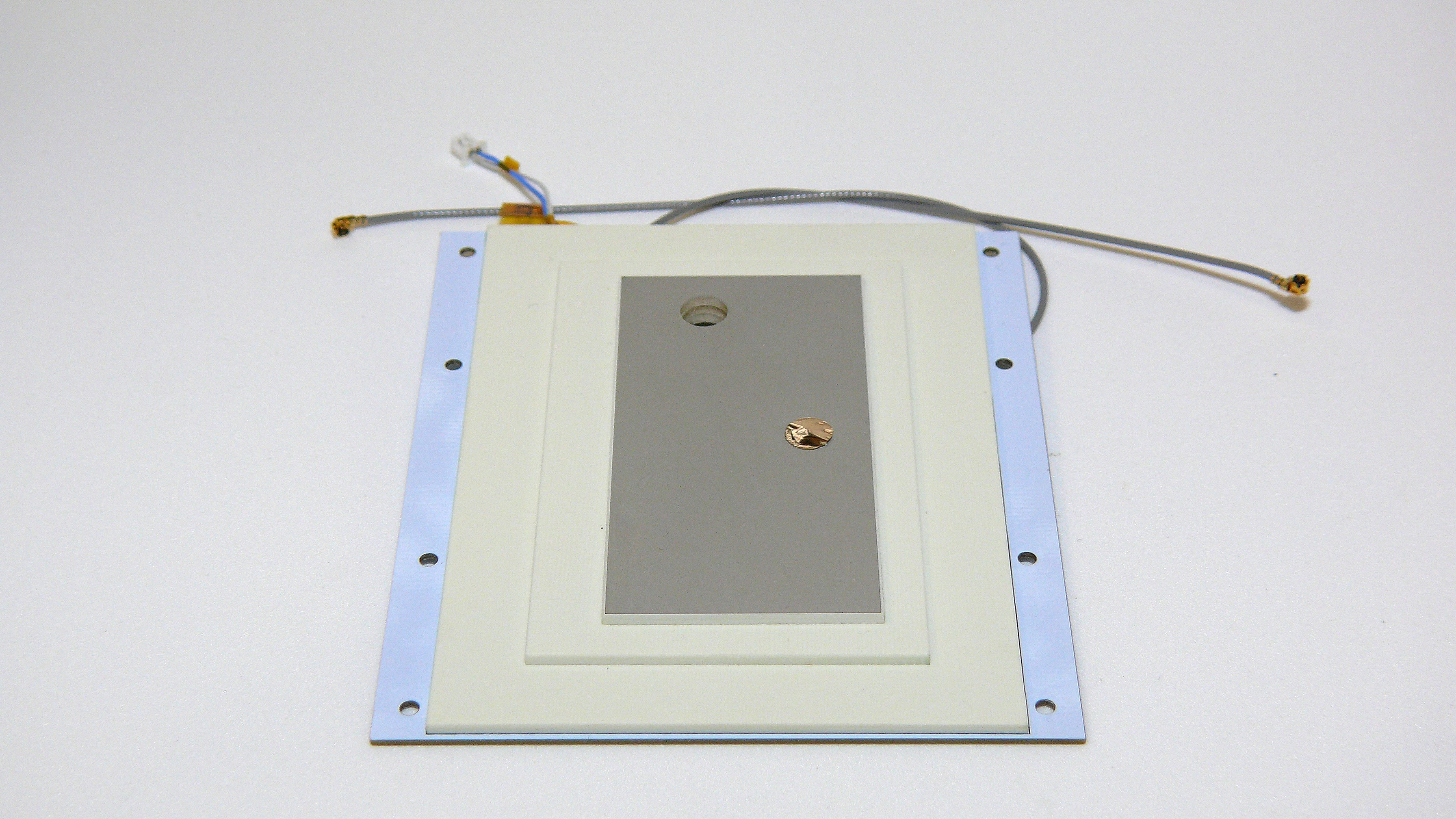

SSA02 34dB Wide Bandwidth Amplified S-Band Patch Antenna
Overview
The EXA SSA02 is the power-amplified version of the SSA01 wide bandwidth S-band antenna than can accommodate a bandwidth of up to 195 MHz for missions that need greater speed and/or bandwidth separation capabilities and great flexibility on the final frequencies selection. It will work between 2025 and 2120 MHz and 2200 and 2300 MHz without sacrificing gain, allowing your mission to not wait for the final bands and frequencies approval: By the time you get your approval papers from your telecommunications authority, you will be ready to fly, just request a frequency within SSA02’s ample range and you save at least 6 months of red tape time.
SSA02 gives your mission’s link budget a powerful boost thanks to its onboard amplifier tied directly to the antenna, working alongside a RF switch chip that allows safe transceiver capability to your radio; the total ERP delivered by the SSA02 is a powerful 34 dB allowing the use of very low power radios, thus saving power without sacrificing link budget.
This also means that 2 radios can share the same antenna!
Looking for more information or want to purchase?
Overview
- Name
- SSA02 34dB Wide Bandwidth Amplified S-Band Patch Antenna
- Vendor
- Ecuadorian Space Agency
- Subsystem
- Telecom Subsystem
- Component Type
- Microstrip Antenna
- Form Factor
- All
- Heritage
- Yes
- Average Cost
- $9,600 USD
- Fiscal Year
- 2022
- Average Lead Time
- 0 to 1 months
Vendor Details
- Name
- Ecuadorian Space Agency
- Website
- http://exa.ec/index-en.html
- Founded
- 2007
- Summary
- EXA is an aerospace research and development institution that, among other things, designs and builds extreme hardware for CubeSats, with more than 7 years of record-setting flight heritage in extreme conditions. EXA’s technology is singular, original, simple, solid and dependable and allows CubeSat developers to use COTS components in order to break the limitations of budget and power typical of the cubesat form factor, the deployable hardware is based over EXA’s unique Active Artificial Muscle technology for a dependable, proven and anti-whiplash deploy of challenging mechanical elements. Flight heritage from 10+ missions backs their technology which is currently in use in European, Asian and Latina merican spacecrafts, and in the challenging U.S. market.
Vendor Request for Information Form
Specifications
- Subsystem
- Telecom Subsystem
- Component Type
- Microstrip Antenna
- Form Factor
- All
- Vendor
- Ecuadorian Space Agency
- Dry Mass
- 0.06 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
