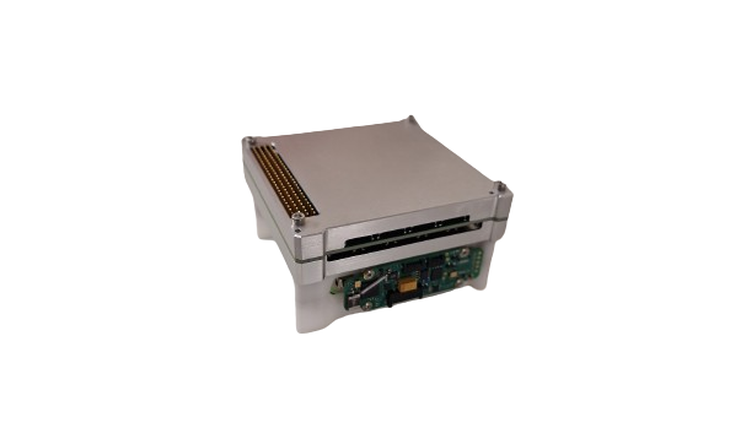

SOLO EPS 4 - Cubesat EPS and PCDU
Overview
2NDSpace products derived from a decade of experience of the 2NDSpace team in the design of space systems and successful nanosatellites missions. SOLO is a modular power system that can be configured according to mission and platform requirements offering high versatility from 1U to 16U cubesat combined with high performances for platform subsystem and demanding payload units.
Power Distribution & Management Unit
4x Standard battery pack
12x power outputs
Custom voltage output levels (3.3/5.0/12V/15V as standard)
RS422, CAN, I2C Communication protocols
Configurable 6x solar panel inputs
104 W instant power output
50 Whr energy storage
Latch-up protection and fault tolerant power-continuity architecture
10 years durability in LEO
Looking for more information or want to purchase?
Overview
- Name
- SOLO EPS 4 - Cubesat EPS and PCDU
- Vendor
- 2NDSPACE
- Subsystem
- Power Subsystem
- Component Type
- EPS/PCDU
- Form Factor
- CubeSat
- Heritage
- Yes
- Average Lead Time
- 2 to 4 months
Vendor Details
- Name
- 2NDSPACE
- Website
- https://www.2ndspace.eu/
- Founded
- 2023
- Summary
- 2NDSPACE is a New Space company that offers innovative nano-satellites platforms, cubesat components and separation systems, focusing on short lead times and tailor-made approach.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- EPS/PCDU
- Form Factor
- CubeSat
- Vendor
- 2NDSPACE
- Dry Mass
- 0.35 kg
- Average Power
- 0.035 W
- Heritage
- Yes
- Status
- In Production
