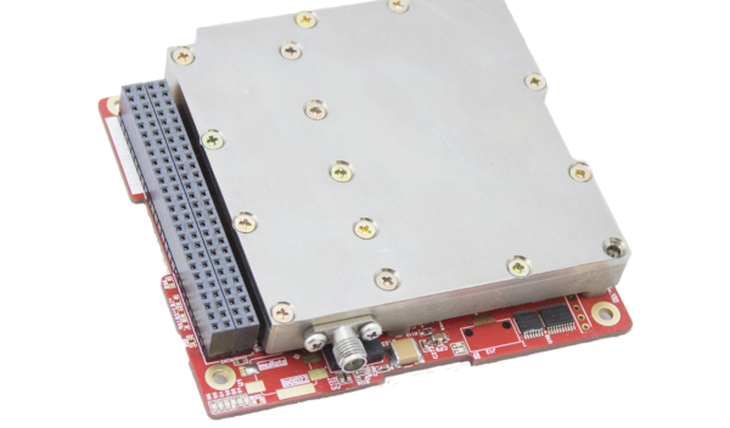

SBTRcvr S-Band Transceiver
Overview
The S-Band Transceiver (SBTRcvr) for microsat platform performs the typical on board telemetry and command functions. It is composed of two different functional sections, receiver and transmitter, and it is based onto a well consolidated analogue architecture. Three trays, or module, stacked in vertical direction house the unit electronics: (1) Receiver, (2) Transmitter, (3) Reference oscillator and Interface.
In term of used technologies, the SBTRcvr is based on robust and standard surface mount device (SMD) manufacturing approach and high reliable FR4 and Polyammide Printed Circuit Board. The selection of COTS devices has been made in order to have reduced sensitivity to radiation. A radiation hardness level of 10 krad has been considered as design parameter.
The modular design allows to derive from the basic design a line of COTS-based products for LEO missions as transmitter for high data rate transmission and command receiver for various modulation formats and frequency bandwidths.
Looking for more information or want to purchase?
Overview
- Name
- SBTRcvr S-Band Transceiver
- Vendor
- IMT
- Subsystem
- Telecom Subsystem
- Component Type
- Transceiver
- Form Factor
- SmallSat
- Heritage
- N/A
Vendor Details
- Name
- IMT
- Website
- http://www.imtsrl.it/
Vendor Request for Information Form
Specifications
- Subsystem
- Telecom Subsystem
- Component Type
- Transceiver
- Form Factor
- SmallSat
- Vendor
- IMT
- Dry Mass
- 1.0 kg
- Average Power
- 10.0 W
- Heritage
- N/A
- Status
- In Production
