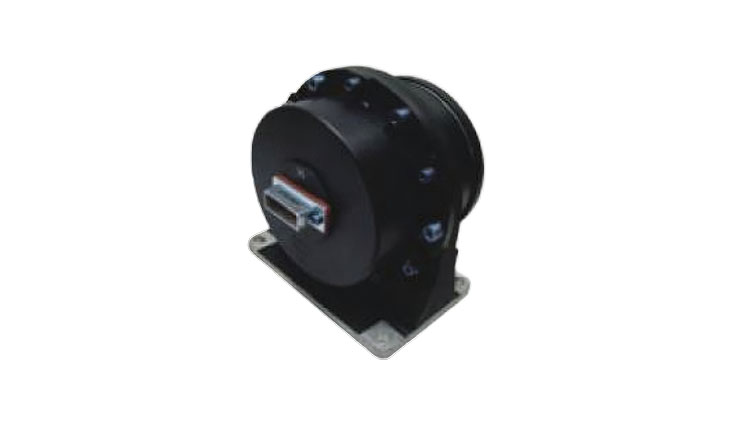

RW1000
Overview
The RW1000 is an integrated digital reaction flywheel which consists of a brushless motor, photoelectric encoding sensor, rotating mass, sealed housing, ball bearing unit, and digital electronic control. It can provide a torque of 1 Nm and an angular momentum of 15 Nms simultaneously. This is the largest reaction wheel available from OCE at present.
Its key features are high accuracy and large torque. The main application is zero momentum satellites and light fast reaction satellites which require rapid attitude maneuver in middle or high orbits.
Looking for more information or want to purchase?
Overview
- Name
- RW1000
- Vendor
- OCE Technology
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- SmallSat
- Heritage
- N/A
Vendor Details
- Name
- OCE Technology
- Website
- https://ocetechnology.com/
- Summary
- O.C.E. Technology supplies radiation-hardened system-on-chips, system-in-package memories, on-board computers, and custom parts. Its industry leading debug software accelerates development times thus reducing cost. The company’s branded products division include satellite subsystems from the Chinese space program.
Vendor Request for Information Form
Specifications
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- SmallSat
- Vendor
- OCE Technology
- Dry Mass
- 11.5 kg
- Average Power
- 10.0 W
- Heritage
- N/A
- Status
- In Production
