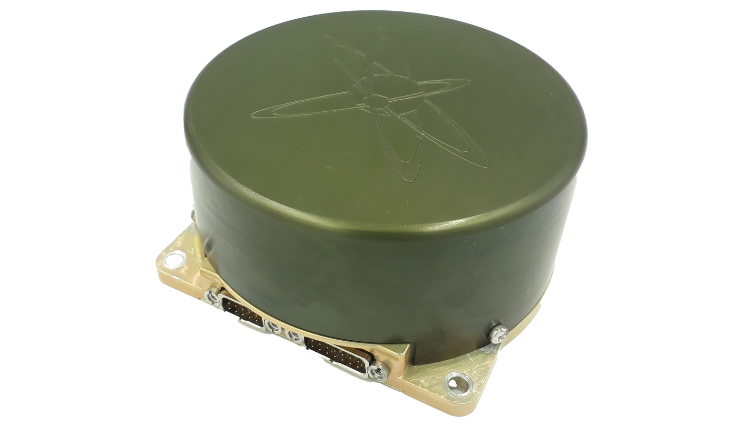

RW-1Nms
Overview
The RW-1Nms is a high-reliability reaction wheel designed for imaging satellites, providing exceptional stability and precise control with minimal disturbance torques. It offers minimal momentum error, high torque output for rapid manoeuvres, and maximum momentum capacity, all in a compact design, and includes a comprehensive set of protection features.
Looking for more information or want to purchase?
Overview
- Name
- RW-1Nms
- Vendor
- Dragonfly Aerospace
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- All
- Heritage
- N/A
Details
- Angular Momentum:
- 1.0 Nms @28.5 V
- Control Modes
- Current, Speed & Torque
- Control Rate (Speed, Torque)
- 10 Hz
- Torque
- ±39 mNm (±74 mNm)*
Vendor Details
- Name
- Dragonfly Aerospace
- Website
- https://dragonflyaerospace.com/
- Founded
- 2020
- Summary
- Dragonfly Aerospace envisions a future in which our small, high-performance imaging satellites and payloads enable large imaging constellations that provide persistent views of the Earth in a variety of spectrums, providing unprecedented business intelligence and improving people's lives all over the world. Dragonfly Aerospace satellites and payloads are built on a 25-year legacy of components and design principles that date back to the first South African microsatellite, SUNSAT, which was launched in 1999. Since South Africa's entry into the space race, members of our team have worked on every microsatellite space mission.
Vendor Request for Information Form
Specifications
- Subsystem
- ACDS Subsystem
- Component Type
- Reaction Wheel
- Form Factor
- All
- Vendor
- Dragonfly Aerospace
- Dry Mass
- 1.0 kg
- Average Power
- N/A
- Heritage
- N/A
- Status
- In Production
