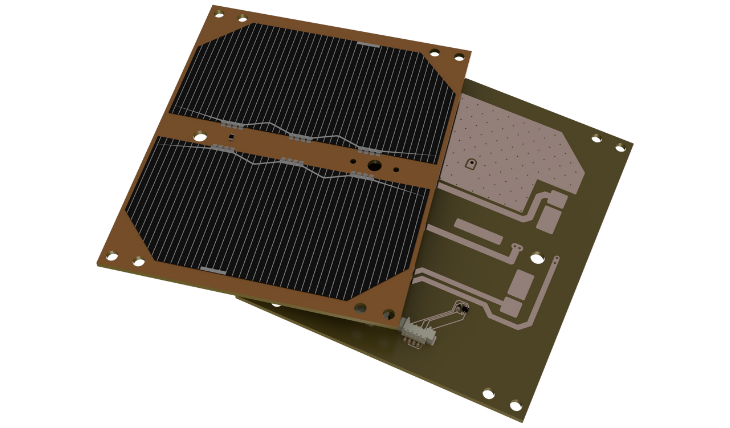

RA - Solar Panels

Vendor profile

Overview

Spacemanic’s RA - Solar Panels are LEO-rated solar power generation systems for nanosatellite and small satellite missions. The panels can be manufactured and customized to various sizes and shapes The system can be mounted on the satellite side or top and is available with different cell layouts and sensor mounts.

The panels also feature a variety of options for interface accommodation. Versions are available with an integrated patch antenna for S-band communication, GNSS receiver, or with an integrated electromagnetic coil for de-tumbling.

Composed of two 30% triple-junction solar cells in series configuration, the panels are compatible with a range of CubeSat vendor structures and Electrical Power Systems (EPSs).

Key Features:
- Available for a wide variety of nanosatellite sizes
- Extensive flight heritage
- LEO-rated at 2.3 Watts (1U side panel)
- Space-grade protection diodes
- Two 30% triple-junction GaAs solar cells in series configuration
- Integrated temperature sensor TI TMP112
- Integrated SLCD-61N8 photodiode
- A variety of customization options are available including an extra copper layer for radiation shielding and a fake panel (without solar cells)
- STL model for 3D printer available

Looking for more information or want to purchase?

Contact now

Overview

Name: RA - Solar Panels
Vendor: Spacemanic CZ
Subsystem: Power Subsystem
Component Type: Solar Panel
Form Factor: CubeSat
Heritage: Yes

Vendor Details

Name: Spacemanic CZ
Website: https://www.spacemanic.com/
Founded: 2019
Summary: Spacemanic is a turnkey nanosatellite solutions provider and CubeSat components manufacturer. The company focuses on the design, development, and testing of fundamental small satellite components based on the plug-and-play methodology. Spacemanic's primary objective is to shorten the time needed for nanosatellite missions to move from the drawing board to space. With a proprietary line of sub-systems, Spacemanic also aims to lower the costs of launching customer payloads; making space more accessible to scientific institutions, universities, and private customers with various budget sizes.
