Description

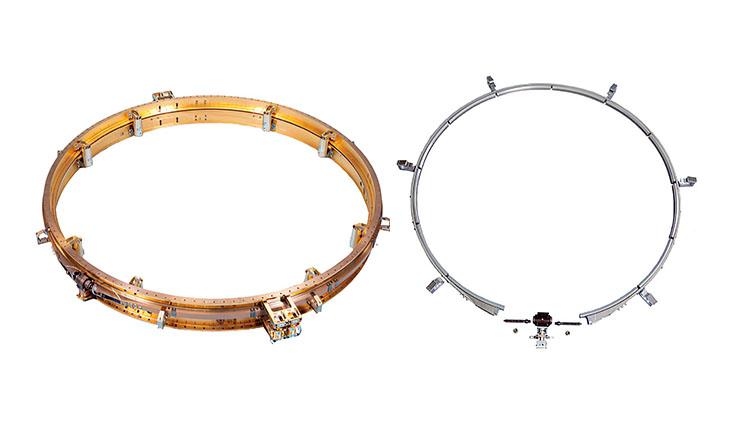

The RUAG PSR 1575 mm (62”) separation system is fully compatible with the Evolved Expendable Launch Vehicle (EELV) Secondary Payload Adapter (ESPA). The PSR 1575 Separation System includes a low shock clamp band separation system, payload separation rings, umbilical connectors and a separation spring set. Utilizing our CBODTM Low Shock Release Mechanism every RUAG separation system provides the unique combination of high load capability and a low shock release. Each customer may require specific mission adaptation, but our successful heritage has resulted from working closely with customers and contractors during the spacecraft design phase to establish a fully compatible design.

Developed over 30 years of 100% flight success, the RUAG Space family of Payload Adapters and Separation Systems span a range of diameters from 14 to 103 inch (360 mm to 2624 mm) To date (February 2019) we have provided our customers with 660 in-orbit separations, carried out with a success rate of 100%. Our customer base includes the major launch service providers and satellite contractors supporting end-users that include most US and international commercial operators, and government and national space agencies.



Datasheet

RUAG – PSR 1575 mm

Overview
NamePSR 1575 mm
ManufacturerRUAG
SubsystemMechanical
ClassificationLaunch Adapter
Sub-classificationESPA
Form FactorSmallSat
TRL9
HeritageYes
Vendor Overview
Vendor NameRUAG
Vendor Websitehttps://www.ruag.com/en
Vendor LocationsAustria, Finland, Germany, Sweden, Switzerland, United States
Vendor Request for Information Form

    Name *

    Email *

    Country *

    Would you like suggestions about similar products/services from other suppliers?

    Inquiry Description *

    SPECIFICATIONS
    SubsystemMechanical
    ClassificationLaunch Adapter
    Form FactorSmallSat
    VendorRUAG
    HeritageYes
