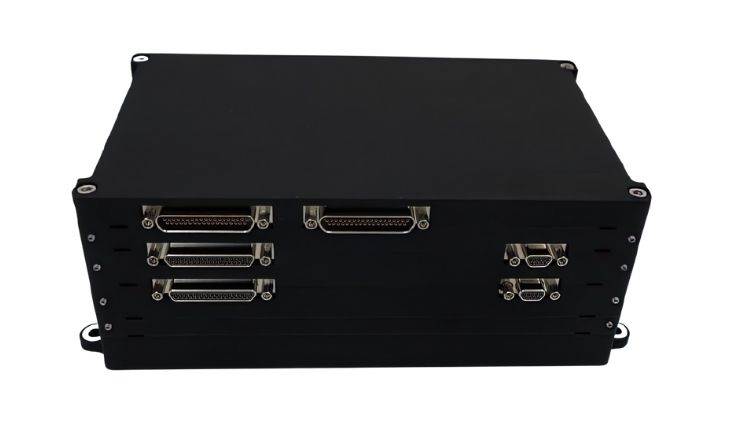

Payload Power and Data Handling (PPDH-110)
Overview
The PPDH110 by Berlin Space Technologies is a sophisticated payload power and data handling unit designed for small satellite payloads. It acts as the single interface unit between the bus and the payload.
It has space heritage and is qualified for space. Its modularity by design makes it easy to adapt to any new payload while leaving the bus unchanged. Thus, any voltages between 1.8V - 40V can be provided and any TMTC interfaces can be provided.
Power Conditioning Functions:
- Supplying regulated DC voltages and bus voltage to payload units
- Power switching of payload power lines
- Over-current protection for payload units
- Bus power subsystem protection against payload latch-ups
Command and Data Handling Functions:
- Forwarding telecommands to payload units
- Switch payload data routing between payload units
- Payload time synchronization
- Collecting payload telemetry
Looking for more information or want to purchase?
Overview
- Name
- Payload Power and Data Handling (PPDH-110)
- Vendor
- Berlin Space Technologies
- Subsystem
- CDH Subsystem
- Component Type
- CDH Other
- Form Factor
- SmallSat
- Heritage
- Yes
Vendor Details
- Name
- Berlin Space Technologies
- Founded
- 2009
- Summary
- Berlin Space Technologies (BST) is a specialist for small satellite systems and technology. We build on a 30 year tradition of small satellites made in Berlin. BST is vertically integrated and offers reliable and cost-efficient end to end solutions for your mission. Berlin Space Technologies (BST) is a global leader in the NewSpace economy and an experienced supplier of small satellite systems and technologies. Our subsystems fly on more than 100 missions and our state of the art LEOS platform can support the most challenging missions. We are an vertical integrated end to end solution provider. We offer capacity building for emerging space nations, in orbit demonstration for your payloads and together with our partner Azista we can provide entire mega constellations.
Vendor Request for Information Form
Specifications
- Subsystem
- CDH Subsystem
- Component Type
- CDH Other
- Form Factor
- SmallSat
- Vendor
- Berlin Space Technologies
- Dry Mass
- 1.1 kg
- Average Power
- 1.85 W
- Heritage
- Yes
- Status
- In Production
