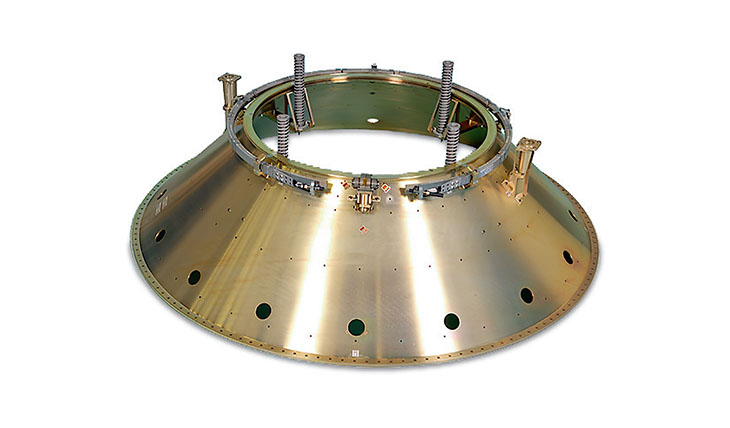

PAS 37S
Overview
The Payload Adapter Systems (PAS) are compatible with industry standard forward interfaces of 937 mm, 1194 mm and 1666 mm diameter (circular ring section) and with the BSS702 four (4) bolt interface at a 65-inch diameter. The aft interface of all the systems is the EELV standard 1575 mm (62 inch). All systems are delivered with adapter, release mechanism, clamp band and retention devices, separation spring set, electrical umbilical hardware, and required wiring harness. The adapter structures are designed and manufactured from aluminium ring forgings and CFRP shell structures using the experience gained in previous space programs and in Saab AerPAS 66VS ospace programs.
Looking for more information or want to purchase?
Overview
- Name
- PAS 37S
- Vendor
- Beyond Gravity
- Subsystem
- Mechanical Subsystem
- Component Type
- Launch Adapter
- Form Factor
- SmallSat
- Heritage
- Yes
Vendor Details
- Name
- Beyond Gravity
- Website
- https://www.beyondgravity.com/
- Founded
- 2009
- Summary
- Beyond Gravity (formerly RUAG Space) is a pioneer in the space industry, fusing the nimbleness, creativity, and inventiveness of a startup with a wealth of expertise and a reputation for quality. Our primary objective is to push the boundaries of human achievement and facilitate exploration of the cosmos by developing and producing cutting-edge satellite and launch vehicle technologies. We are the go-to provider of structural components for all types of launch vehicles and a top player in the development of satellite products and constellations in the burgeoning New Space field.
Vendor Request for Information Form
Specifications
- Subsystem
- Mechanical Subsystem
- Component Type
- Launch Adapter
- Form Factor
- SmallSat
- Vendor
- Beyond Gravity
- Dry Mass
- 70.0 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
