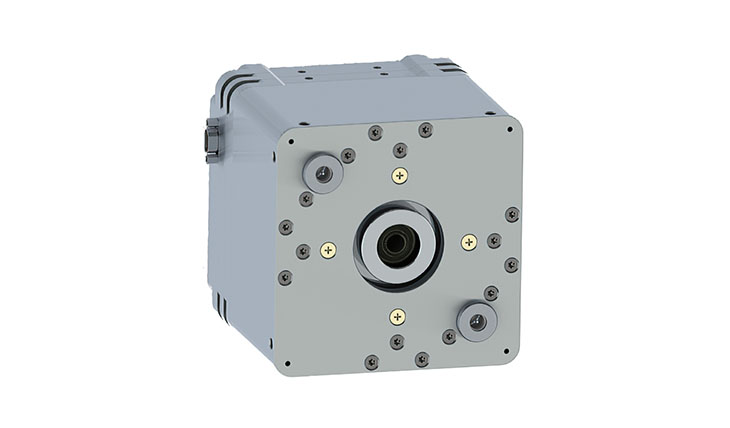

NPT30-I2 1U
Overview
ThrustMe’s NPT30 family are fully integrated propulsion system based on the gridded ion thruster technology. They have a modular design, and include the ion thruster, the PPU, the propellant storage, feed system as well as passive thermal management and intelligent operation control. The I2 versions use solid iodine propellant, are delivered pre-filled and remain non-pressurized during launch. Use of iodine also avoids sloshing and provides geometrical design flexibility to accommodate platform requirements. The 1U version provides up to 5500 Ns of total impulse, and 1.1 mN of thrust.
Looking for more information or want to purchase?
Overview
- Name
- NPT30-I2 1U
- Vendor
- ThrustMe
- Subsystem
- Propulsion Subsystem
- Component Type
- Electric Propulsion System
- Form Factor
- CubeSat
- Heritage
- N/A
Vendor Details
- Name
- ThrustMe
- Website
- https://thrustme.fr
- Founded
- 2017
Vendor Request for Information Form
Specifications
- Subsystem
- Propulsion Subsystem
- Component Type
- Electric Propulsion System
- Form Factor
- CubeSat
- Vendor
- ThrustMe
- Dry Mass
- 1.2 kg
- Average Power
- 50.0 W
- Heritage
- N/A
- Status
- In Production
