Nano SmartPack Release Nut (nD3SP)

Vendor profile

Overview

Ultra-flat shape-memory release actuator made to secure most delicate space mechanism and deployables during their ride to space.

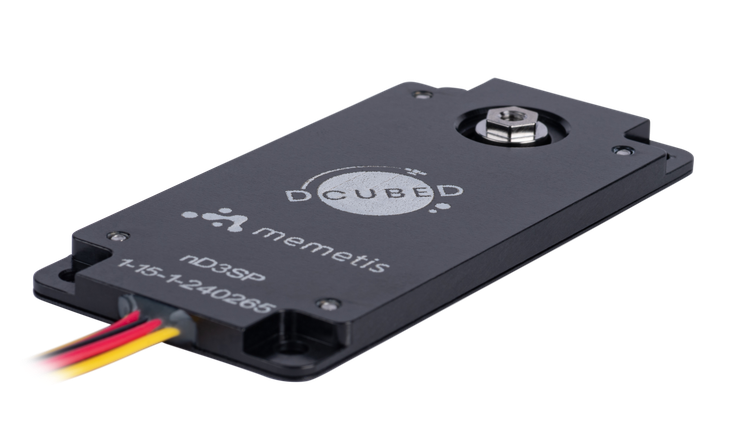

The DCUBED Nano SmartPack Release Nut (nD3SP) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the flattest, yet powerful HDRM solutions on the market. Moreover, it is easily resettable, easy-to-use and readily available as a COTS component.

Check out how to trigger and easily reset the DCUBED Nano SmartPack Release Nut nD3SP here: https://www.youtube.com/watch?v=9UCRGf_t8Pg

Key Features
Field-Resettable in Seconds, up to 400 times
Short Delivery Time (8-10 weeks)
TRL 8
Fully Redundant Actuation
Smart SMA Trigger
Ultra Low Shock
Actuation Sensor
Axial Load (Release Load) >200N
Ultimate Load Rating: 500 N Pull-out, 1500 N Shear
Body Size: 74 x 35 x 4mm
Mass: 27 grams
Body and Nut material: Hard anodized Aluminum 7075-T6
Temperatures: -65°C to +75°C

Export Control
The DCUBED Nano SmartPack Release Nut (nD3SP) is ITAR Free.

Looking for more information or want to purchase?

Contact now

Overview

Name: Nano SmartPack Release Nut (nD3SP)
Vendor: DCUBED
Subsystem: Mechanical Subsystem
Component Type: Mechanism
Form Factor: All
Heritage: N/A
Average Lead Time: 1 month

Vendor Details

Name: DCUBED
Website: https://dcubed.space/
Founded: 2019
Summary: DCUBED is a German NewSpace company that accelerates space exploration by developing and manufacturing user-friendly, durable, and affordable Release Actuators, Solar Arrays, and Deployables structures for a wide range of space applications. DCUBED’s space-proven Launch Locks and Release Actuators (Pin Pullers and Release Nuts) are readily available (lead times of only a few weeks), easy to use, and field-resettable of up to a few hundred times. Furthermore, DCUBED’s Space Selfie Sticks, and space-proven Solar Arrays, tackle the needs of global space customers, namely maximizing performance in space, while efficiently stowing in a standardized volume for launch. Doing truly big things in space, DCUBED is at the forefront of In-Space Manufacturing, by developing technologies to manufacture large structures directly in space.
