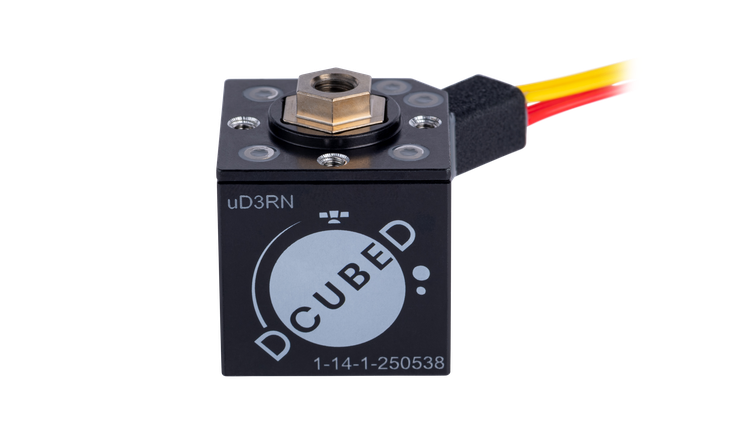

Micro Release Nut (uD3RN)
Overview
User-friendly, high-performance release device triggering any space mechanism on-orbit.
The Dcubed Micro Release Nut (uD3RN) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful HDRM solutions on the market. Moreover, it is easily resettable (on-ground, in-space), easy-to-use and readily available as a COTS part.
Check out how to trigger and reset the Dcubed Micro Release Nut uD3RN here: https://www.youtube.com/watch?v=ltBeCYGOsd8
Key Features
On-Ground Resettable, up to 100 times
Short Delivery Time (10-12 weeks)
Fully Redundant Actuation
Smart SMA Trigger
Ultra Low Shock
Axial Load (Release Load) >4 kN
Proof Load: 4, 500 N Pull-out
Body Size: 25 x 25 x 25 mm
Mass: 40 grams
Body material: Hard anodized Aluminum 7075-T7351
Nut material: Titanium grade 5
Temperatures: -65°C to +75°C
Customizable Interfaces
Export Control
The Dcubed Micro Release Nut (uD3RN) is ITAR Free.
Looking for more information or want to purchase?
Overview
- Name
- Micro Release Nut (uD3RN)
- Vendor
- DCUBED
- Subsystem
- Mechanical Subsystem
- Component Type
- Mechanism
- Form Factor
- All
- Heritage
- N/A
- Average Lead Time
- 1 month
Vendor Details
- Name
- DCUBED
- Website
- https://dcubed.space/
- Founded
- 2019
- Summary
- Dcubed is a NewSpace company located in Germany and the United States. Dcubed accelerates space exploration by developing and manufacturing user-friendly, durable, and affordable Release Actuators and Solar Arrays for a wide range of space applications. Dcubed’s space-proven Launch Locks and Release Actuators (Pin Pullers and Release Nuts) are readily available (lead times of only a few weeks), easy to use, and field-resettable of up to a few hundred times. Furthermore, Dcubed’s space-proven Solar Arrays, tackle the needs of global space customers, namely maximizing performance in space, while efficiently stowing in a standardized volume for launch. Dcubed develops body-mounted, deployable and rollable Solar Arrays to cover an array of power requirements. Partner with Dcubed and let’s do Big Things in Space!
Vendor Request for Information Form
Specifications
- Subsystem
- Mechanical Subsystem
- Component Type
- Mechanism
- Form Factor
- All
- Vendor
- DCUBED
- Dry Mass
- 0.04 kg
- Average Power
- N/A
- Heritage
- N/A
- Status
- In Production
