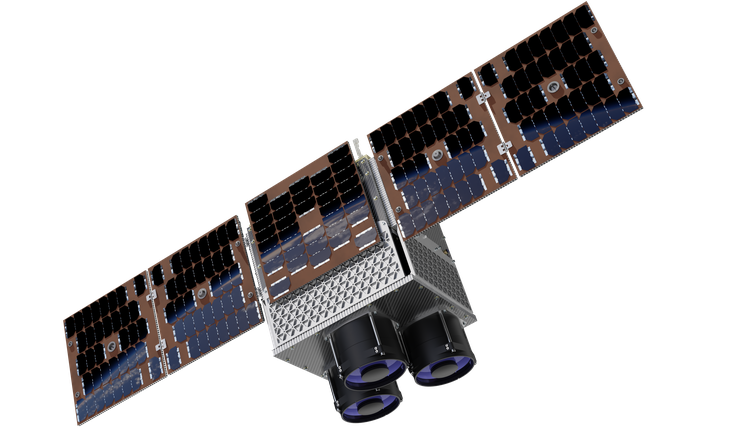

Komodosat

Vendor profile

Overview

KomodoSat offers class-leading multispectral imaging for a range of Earth observation and space situational awareness applications. Up to six ηDragonfly buses can be launched on a standard 24" ESPA port.

• Ground Imaging Coverage → 1,2 million km2 / day
• Geolocation Knowledge Accuracy → 120 m (3-sigma)
• Pointing Control Accuracy → <0.01° (3-sigma)
• Stability Control Accuracy → <0.005°/sec (3-sigma)
• Slew Rate → Up to 12°/sec

Looking for more information or want to purchase?

Contact now

Overview

Name: Komodosat
Vendor: Dragonfly Aerospace
Subsystem: Bus and Platform
Component Type: SmallSat Platform
Form Factor: SmallSat
Heritage: N/A

Details

Design Life: 5 Years
Ground Imaging Coverage: 1,2 million km² / day
Spatial Resolution (GSD) at 500 km: 1.5m PAN / 3 m MS in 11 bands
Swath at 500 km: 15 km
Total Mass: 60 kg

Vendor Details

Name: Dragonfly Aerospace
Website: https://dragonflyaerospace.com/
Founded: 2020
Summary: Dragonfly Aerospace envisions a future in which our small, high-performance imaging satellites and payloads enable large imaging constellations that provide persistent views of the Earth in a variety of spectrums, providing unprecedented business intelligence and improving people's lives all over the world. Dragonfly Aerospace satellites and payloads are built on a 25-year legacy of components and design principles that date back to the first South African microsatellite, SUNSAT, which was launched in 1999. Since South Africa's entry into the space race, members of our team have worked on every microsatellite space mission.
