Komodo Imager

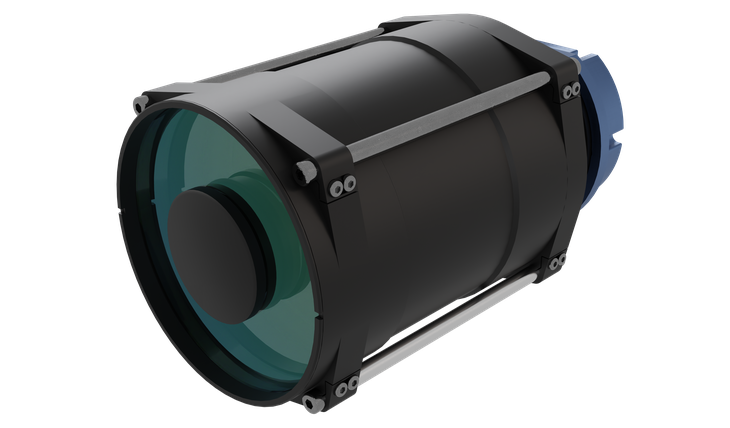

Komodo Imager image

Overview

Komodo is a class-leading imager that extracts the maximum performance from its 12U form factor. Competing with much larger imaging systems in terms of GSD and swath, Komodo provides multispectral data generation tailored to fit various applications, as well as push broom and RBG snapshot, making it suitable for both Earth observation and SSA applications.


Swath at 500 km
• RGB → 6.1 km
• Multispectral → 15 km


Imager Type
• RGB → Snap shot
• Multispectral → Push broom


Spectral Bands
• RGB → Standard RGB
• Multispectral → 11 x MS bands


Data Format
• RGB → 8-bit or 10-bit
• Multispectral → 10-bit or 12-bit

Looking for more information or want to purchase?

Overview

Name
Komodo Imager
Component Type
Camera/Imager
Form Factor
CubeSat
Heritage
N/A

Details

TRL
5
Spatial resolution (GSD) at 500 km - RGB
1.5 m
Spatial resolution (GSD) at 500 km - MS
PAN 1.5 / MS 3 m (binned 2x2)
Swath at 500 km - RGB
6.1 km
Swath at 500 km - MS
15 km
Physical Size
16 U
Operating Temperature
+10°C to +30°C
Survival Temperature
-20°C to +55°C

Vendor Details

Name
Dragonfly Aerospace
Founded
2020
Summary
Dragonfly Aerospace envisions a future in which our small, high-performance imaging satellites and payloads enable large imaging constellations that provide persistent views of the Earth in a variety of spectrums, providing unprecedented business intelligence and improving people's lives all over the world. Dragonfly Aerospace satellites and payloads are built on a 25-year legacy of components and design principles that date back to the first South African microsatellite, SUNSAT, which was launched in 1999. Since South Africa's entry into the space race, members of our team have worked on every microsatellite space mission.

Vendor Request for Information Form

Max. 1000 characters

Please include a detailed description in your message. This helps vendors to better understand your request.

Specifications

Component Type
Camera/Imager
Form Factor
CubeSat
Dry Mass
12.0 kg
Average Power
45.0 W
Heritage
N/A
Status
In Production
