Integrated Propulsion System

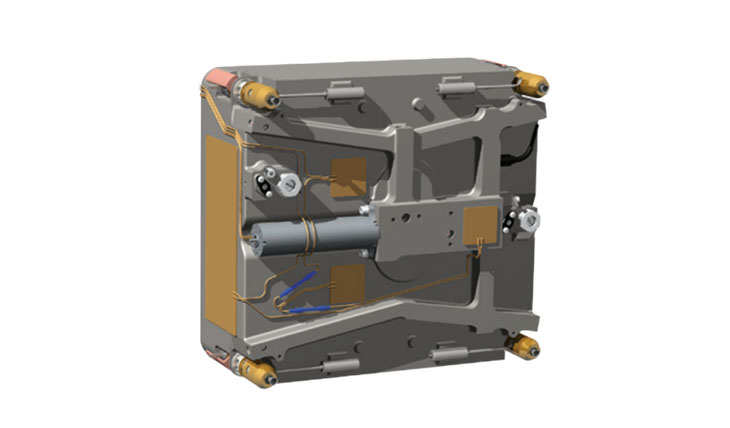

Integrated Propulsion System image

Overview

VACCO’s Integrated Propulsion System (IPS) provides a highly reliable, intelligent, attitude control and delta-V solution capable of delivering 12,000 N-sec total impulse to any SmallSat. IPS is a complete, bolt-on propulsion module including propellant storage, feed system, thrusters and controller. Components and manufacturing methods used are the product of 57 years of space experience including propulsion systems that powered both highly successful Mars Cube One (MarCO) CubeSats.


The IPS features four, flight-proven, 1N LMP-103S green monopropellant thrusters double-canted for a net axial thrust of 3.97N. First launched in 2010, fifty-six of these 1N thrusters have been successfully flown. During delta-V operations individual thrusters can be off-pulsed to achieve thrust vector control, roll control or reaction wheel desaturation. Given high thruster throughput capability, propellant and pressurant capacity can be expanded to increase total impulse with minimal impact to the overall design.

Looking for more information or want to purchase?

Overview

Name
Integrated Propulsion System
Form Factor
CubeSat
Heritage
N/A

Vendor Details

Name
VACCO Industries
Founded
1954

Vendor Request for Information Form

Max. 1000 characters

Please include a detailed description in your message. This helps vendors to better understand your request.

Specifications

Form Factor
CubeSat
Dry Mass
9.0 kg
Average Power
24.0 W
Heritage
N/A
Status
In Production
