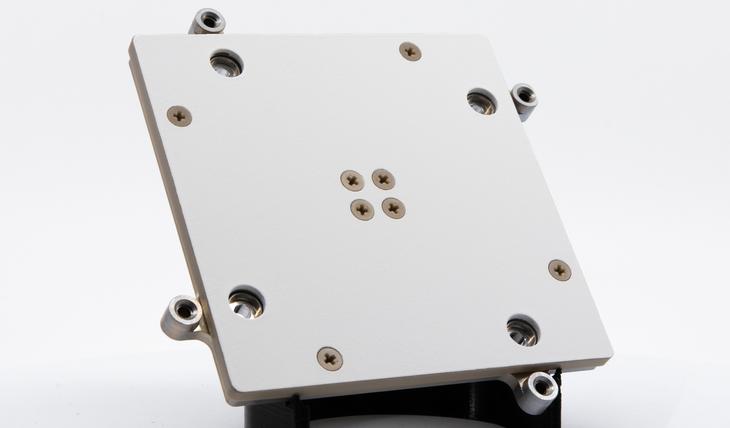

High Gain X-Band Payload Telemetry Antenna

Vendor profile

Overview

Anywaves’ High Gain X-Band antenna is an ultra-thin antenna used for the payload telemetry subsystem. It downlinks the relevant data from the payload to the ground station and provides high gain in order to enable a high data rate link. This antenna is inferior to 1U with a transmitting gain of 15.5 dBi.

It's the perfect choice if you want to reduce the cost and get more data from your payload!

Anywaves’ High Gain X-Band Payload Telemetry antenna is very compact making it suitable for nanosatellite and LEO platforms. With its narrow beam and low-profile, it provides high-quality single circular polarization and guarantees a very high data rate for the payload telemetry links.

NB : this antenna is compatible with Anywaves Test Cap for X-Bands Antennas

More info: https://anywaves.com/products/high-gain-x-band-payload-telemetry-antenna/

Looking for more information or want to purchase?

Contact now

Overview

Name: High Gain X-Band Payload Telemetry Antenna
Vendor: Anywaves
Subsystem: Telecom Subsystem
Component Type: Microstrip Antenna
Form Factor: All
Heritage: N/A
Average Lead Time: 3 months

Details

Frequency Band: From 7.9 GHz to 8.5 GHz
Polarization: Left or Right Hand Circular Polarization
Realized Gain: 15.5 dBi @ boresight

Vendor Details

Name: Anywaves
Website: https://anywaves.com/
Founded: 2017
Summary: Anywaves is a France-based satellite antenna solutions provider. It is one of the leading providers of innovative antenna solutions in the space industry. Anywaves specializes in the design, development, and manufacturing of high-performance antennas that excel in the demanding space environment. Located in Toulouse, Europe’s space capital, Anywaves provides high-quality off-the-shelf (COTS) and custom space antennas worldwide. The company's expertise and technical know-how merge Radio Frequency and Thermal Mechanical experience to develop state-of-the-art and compact antennas. Anywaves uses premium materials and technologies that guarantee optimal performance throughout the space mission. Committed to excellence, Anywaves works closely with its clients to understand their unique requirements and provide tailored solutions that meet their specific needs. They offer a range of COTS antennas perfectly designed according to space standards as an answer to the satellite constellations market’s needs, such as TT&C, Data Downlink, and GNSS. In addition, Anywaves is also able to cover spatial missions' specific needs by developing custom antennas: launchers antennas, high gain antennas (payload telemetry, inter-satellite link, telecommunications, etc.), wide band antennas (spectrum surveillance, GNSS, LEO PNT, etc.) or any other type of antennas and applications (integrated antennas, active antennas, etc.), as per the customer requirements. Recognized for its technical excellence by leading entities such as Airbus, Thales, and Maxar, Anywaves is committed to delivering unparalleled performance, reliability, and production efficiency. The company is distinguished by its EN 9100 certification, demonstrating its adherence to rigorous quality and performance standards in the aerospace, defense, and space sectors.
