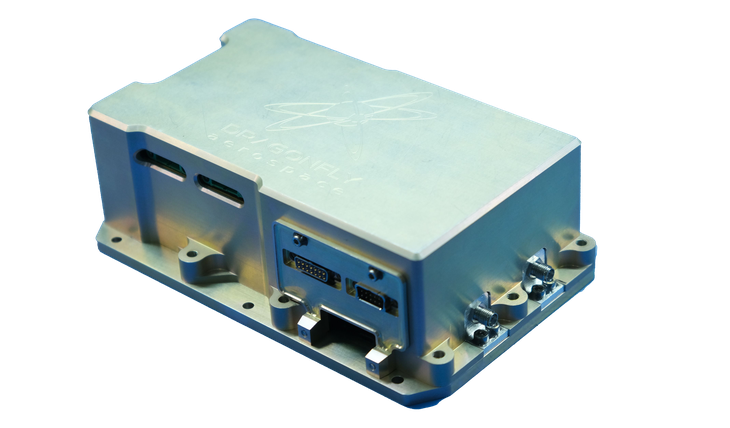

HDRTx-1.5

Vendor profile

Overview

The HDRTx-1.5 is a high-performance, high-data-rate X-band transmitter designed specifically for low Earth orbit micro and mini-satellites.

Leveraging flight-proven technology and advanced DVB-S2 encoding, the HDRTx-1.5 optimizes link margin and maximizes data throughput with dynamic modulation capabilities.
This dual-channel powerhouse delivers up to 150 Msps per channel in dual mode, or an impressive 300 Msps in single-channel mode, ensuring seamless data transmission in the demanding space environment.

Looking for more information or want to purchase?

Contact now

Overview

Name: HDRTx-1.5
Vendor: Dragonfly Aerospace
Subsystem: Telecom Subsystem
Component Type: Transmitter
Form Factor: All
Heritage: N/A

Details

Supply Voltage: 20 - 40 V
Design Life: Up to 8 years LEO
Dimensions: 175 x 145 x 55 mm
Mechanical Interface: 6x M4x12
Operating Temperature: -10 °C to +50 °C
RF Frequency Range: 8.025-8.4 GHz
High-Speed Data Interfaces: GTx, LVDS
Power Consumption (Configuration Dependent): < 33 W
TMTC Interface: CAN, I²C, RS485

Vendor Details

Name: Dragonfly Aerospace
Website: https://dragonflyaerospace.com/
Founded: 2020
Summary: Dragonfly Aerospace envisions a future in which our small, high-performance imaging satellites and payloads enable large imaging constellations that provide persistent views of the Earth in a variety of spectrums, providing unprecedented business intelligence and improving people's lives all over the world. Dragonfly Aerospace satellites and payloads are built on a 25-year legacy of components and design principles that date back to the first South African microsatellite, SUNSAT, which was launched in 1999. Since South Africa's entry into the space race, members of our team have worked on every microsatellite space mission.
