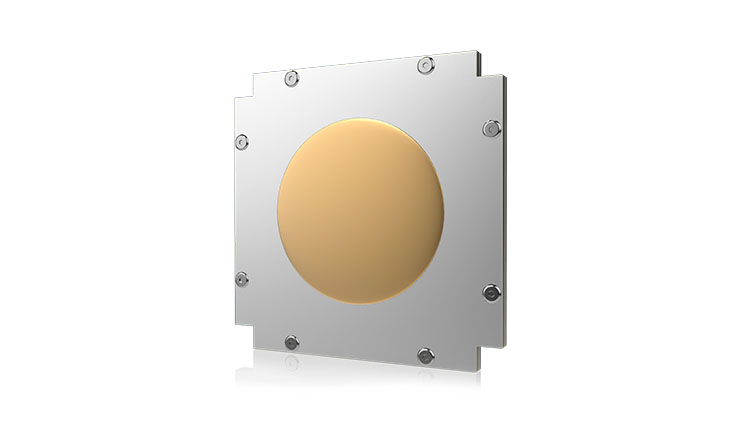

GNSS All-Bands Launcher Antenna

Vendor profile

Overview

Searching for a highly reliable GNSS All-Bands Antenna to equip your launcher? Look no further than Anywaves! As a leading specialist in miniature antenna design and manufacturing, we provide a superior GNSS antenna that is specifically tailored for launcher platforms.

Crafted with robust materials, including a thermal shield to withstand the demanding launch environment, our antenna ensures the utmost accuracy and precision, guaranteeing that your launcher remains in the optimal position at all times.

Operating within the frequency range of 1.16 GHz to 1.61 GHz, our GNSS All-Bands Antenna seamlessly covers multiple GNSS constellations simultaneously. With its highly stable phase center and circular polarization, it offers exceptional signal stability, eliminating any signal interruptions.

Measuring less than 15cm in size, our GNSS All-Bands Antenna is ideal for space-constrained applications. Additionally, our agile manufacturing processes enable us to deliver your antennas within remarkably short turnaround times.

Reach out today to discover how Anywaves can cater to your GNSS antenna requirements for your launcher project!
More info: https://anywaves.com/products/gnss-all-bands-launcher-antenna/

Looking for more information or want to purchase?

Contact now

Overview

Name: GNSS All-Bands Launcher Antenna
Vendor: Anywaves
Subsystem: Telecom Subsystem
Component Type: Microstrip Antenna
Form Factor: All
Heritage: N/A
Average Lead Time: 3 to 6 months

Details

Frequency Band: From 1.16 GHz to 1.61 GHz
Size: 150x150x30 mm³
TRL: 8

Vendor Details

Name: Anywaves
Website: https://anywaves.com/
Founded: 2017
Summary: Anywaves is a France-based satellite antenna solutions provider. It is one of the leading providers of innovative antenna solutions in the space industry. Anywaves specializes in the design, development, and manufacturing of high-performance antennas that excel in the demanding space environment. Located in Toulouse, Europe’s space capital, Anywaves provides high-quality off-the-shelf (COTS) and custom space antennas worldwide. The company's expertise and technical know-how merge Radio Frequency and Thermal Mechanical experience to develop state-of-the-art and compact antennas. Anywaves uses premium materials and technologies that guarantee optimal performance throughout the space mission. Committed to excellence, Anywaves works closely with its clients to understand their unique requirements and provide tailored solutions that meet their specific needs. They offer a range of COTS antennas perfectly designed according to space standards as an answer to the satellite constellations market’s needs, such as TT&C, Data Downlink, and GNSS. In addition, Anywaves is also able to cover spatial missions' specific needs by developing custom antennas: launchers antennas, high gain antennas (payload telemetry, inter-satellite link, telecommunications, etc.), wide band antennas (spectrum surveillance, GNSS, LEO PNT, etc.) or any other type of antennas and applications (integrated antennas, active antennas, etc.), as per the customer requirements. Recognized for its technical excellence by leading entities such as Airbus, Thales, and Maxar, Anywaves is committed to delivering unparalleled performance, reliability, and production efficiency. The company is distinguished by its EN 9100 certification, demonstrating its adherence to rigorous quality and performance standards in the aerospace, defense, and space sectors.
