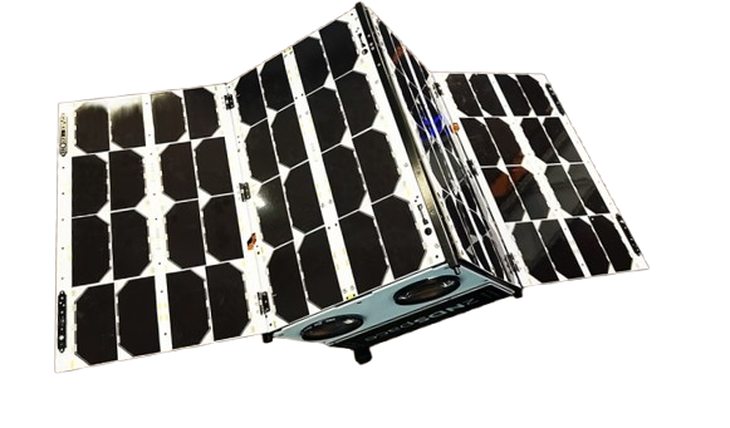

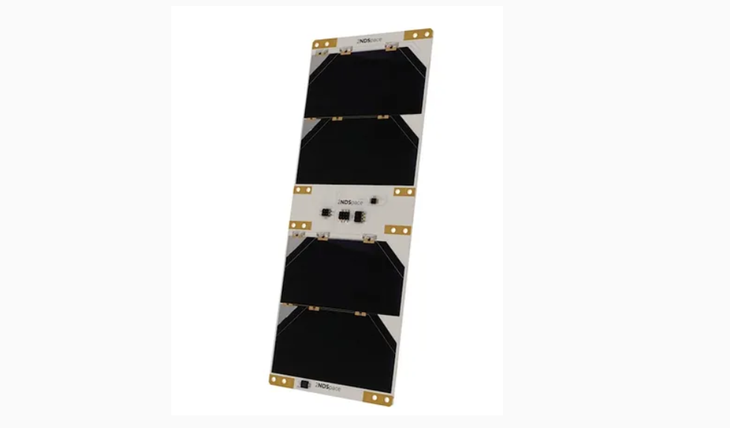

DROP12X - 6U/12U Deployable Solar Panel
Overview
2NDSpace's DROP deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
6U/12U lateral panel (Compatible with 6U/12U Cubesat)
Max Power 40W - (20 V @ 2.0 A - 2x 20V @ 1.0 A)
Backstring option +20W (20V @0.5A)
Redundant HDRM
Customizable deployment angle 90° - 135°
Deployment swithces
Integrated Photodiodes and thermal sensors
Integrated HDRM control system
Improved thermal dissipation technology
Embedded magnetorquer option
RBF, Umbilical optional and IMU option
Looking for more information or want to purchase?
Overview
- Name
- DROP12X - 6U/12U Deployable Solar Panel
- Vendor
- 2NDSPACE
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- CubeSat
- Heritage
- Yes
- Average Lead Time
- 2 to 4 months
Vendor Details
- Name
- 2NDSPACE
- Website
- https://www.2ndspace.eu/
- Founded
- 2023
- Summary
- 2NDSPACE is a New Space company that offers innovative nano-satellites platforms, cubesat components and separation systems, focusing on short lead times and tailor-made approach.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- CubeSat
- Vendor
- 2NDSPACE
- Dry Mass
- 0.56 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
