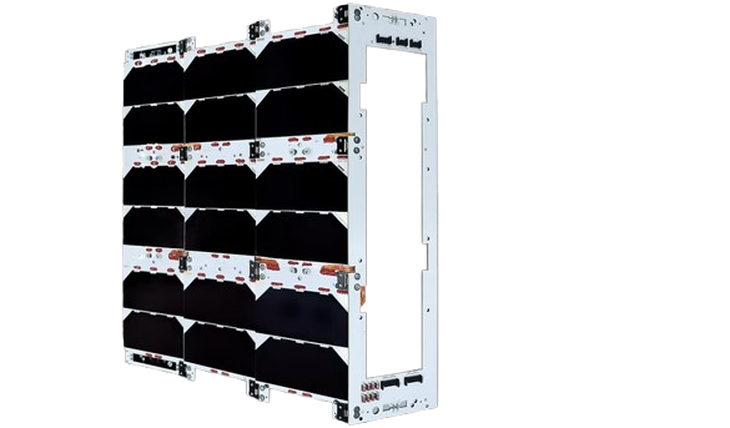

DROP03XL - 3U/6U Triple Deployable Solar Panel
Overview
2NDSpace's DROP deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
3U lateral panel (Compatible with 3U/6U/12U Cubesat)
45W - 15V@1.5 A / 3x 15V@0.5 A
60W - with body mounted string: 15V@2.0 A / 4x15V@0.5 A
Backstring option: +7.5W (15V@0.5A)
Customizable deployment angle 90° - 135°
Redundant HDRM
Deployment swithces
Integrated Photodiodes and thermal sensors
Integrated HDRM control system
Improved thermal dissipation technology
Embedded magnetorquer option
RBF, Umbilical optional and IMU option
Looking for more information or want to purchase?
Overview
- Name
- DROP03XL - 3U/6U Triple Deployable Solar Panel
- Vendor
- 2NDSPACE
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- CubeSat
- Heritage
- Yes
- Average Lead Time
- 2 to 4 months
Vendor Details
- Name
- 2NDSPACE
- Website
- https://www.2ndspace.eu/
- Founded
- 2023
- Summary
- 2NDSPACE is a New Space company that offers innovative nano-satellites platforms, cubesat components and separation systems, focusing on short lead times and tailor-made approach.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- CubeSat
- Vendor
- 2NDSPACE
- Dry Mass
- 0.45 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
