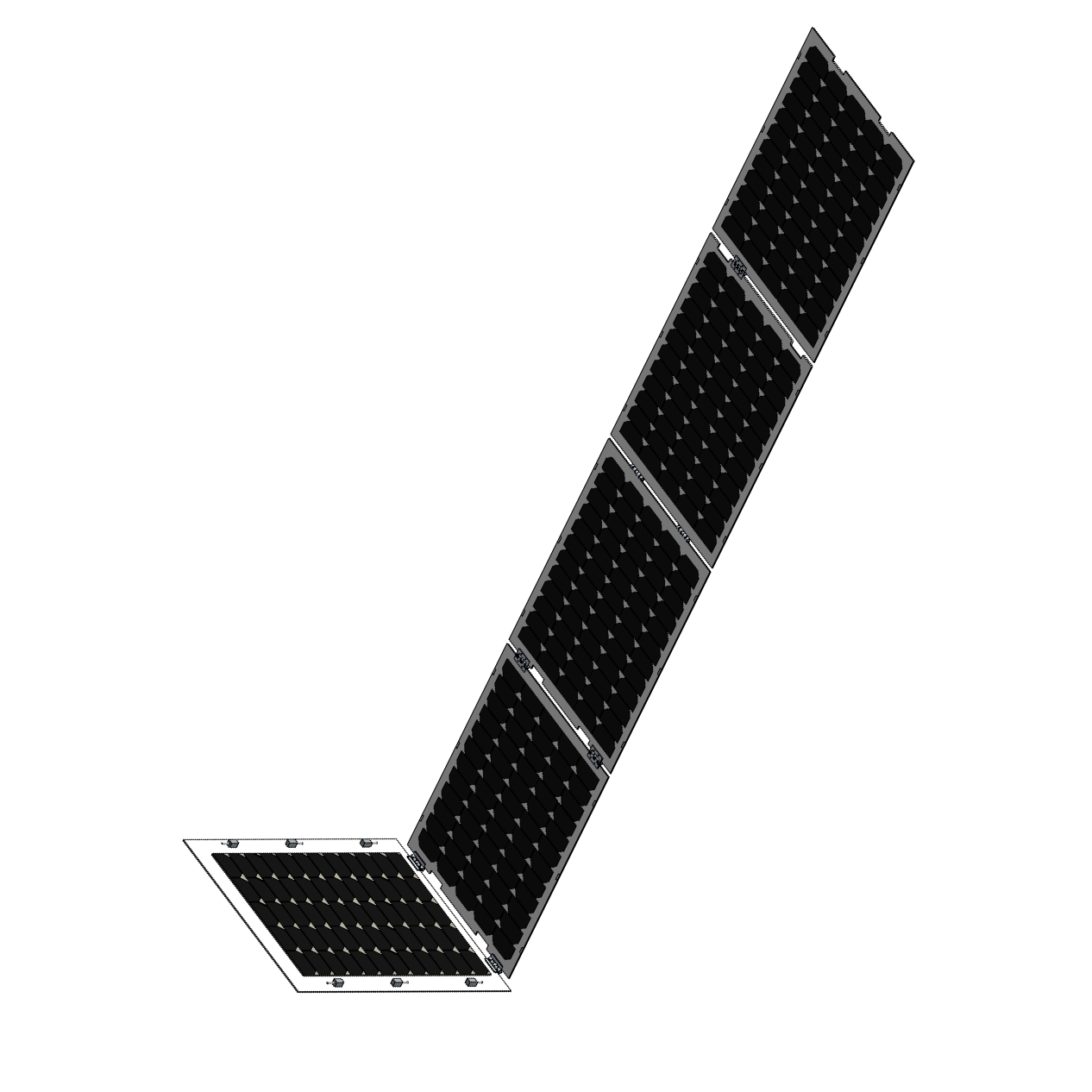

DMSA Micro: Deployable Multifunction Solar Array

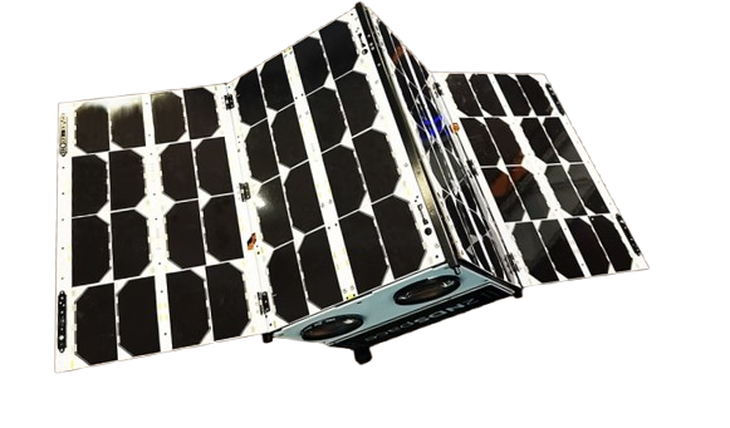

The EXA DMSA Micro (Deployable Multifunction Solar Array for Microsatellites) is the upscaled version of the latest DMSA line, it is one our answer to microsatellite sized products of a family of deployable solar arrays based on artificial muscles for CubeSats. The arrays fold into a panel attached to the CubeSat structure just as another solar panel and once in orbit it deploys to full extension, it includes deploy and release contact sensors and its own deploy control board.

Now, in a world's first, it includes embedded antennas that range from VHF to L band, no longer you need to buy and manage antenna systems, the DMSA has them embedded in its structure as 2 monopoles or 1 dipole and they deploy with the solar array, you just connect the cable to your radio.

It also has an embedded magnetorquer, sun and temperature sensors. These solar panels feature a very high efficiency for very high-power missions; the maximum folded thickness is 19.5 mm for the 4-panel array. Every array is tested and qualified in our own facilities and shipped with full reports, the DMSA Micro yields the best results when coupled with our high-capacity batteries.
