Deep Thought On-board Computer

Vendor profile

Overview

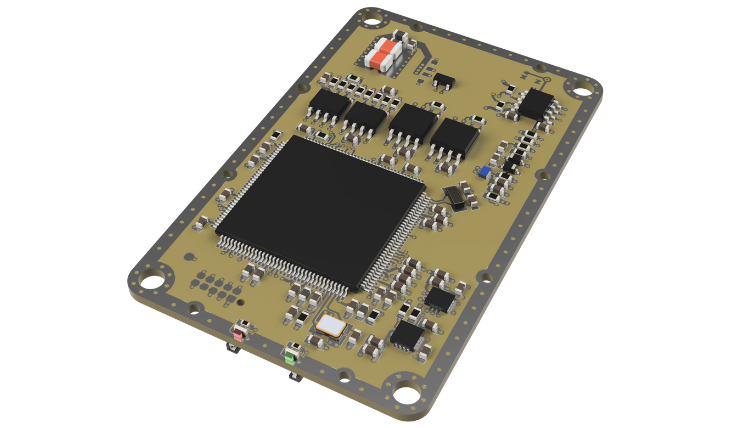

Spacemanic's Deep Thought - the On-board Computer is a high-power CubeSat OBC module suitable for nanosatellite C&DH, TT&C, mass storage, and ADCS.

The radiation-tolerant, Plug-and-Play system is compatible with a wide range of CubeSat components from third-party vendors as well as typical CubeSat standards.

Deep Thought is composed of a 32-bit Cortex-M7 core, rad-tolerant data storage (flash and multi-port SRAM), and an internal and external watchdog in the microcontroller for added reliability.

The OBC is provided with a full compilation of software drivers and a FreeRTOS-based operating system.

Key Features:
- High-reliability and radiation-tolerant data storage
- Robust, plug-and-play design
- On-board temperature sensors
- On-board gyro/acc/mag sensors
- External on-board watchdog
- CubeSat Space Protocol / AX.25 / KISS
- Compatible with variety of commercial RTOS

Looking for more information or want to purchase?

Contact now

Overview

Name: Deep Thought On-board Computer
Vendor: Spacemanic CZ
Subsystem: CDH Subsystem
Component Type: On-Board Computer
Form Factor: CubeSat
Heritage: Yes

Vendor Details

Name: Spacemanic CZ
Website: https://www.spacemanic.com/
Founded: 2019
Summary: Spacemanic is a turnkey nanosatellite solutions provider and CubeSat components manufacturer. The company focuses on the design, development, and testing of fundamental small satellite components based on the plug-and-play methodology. Spacemanic's primary objective is to shorten the time needed for nanosatellite missions to move from the drawing board to space. With a proprietary line of sub-systems, Spacemanic also aims to lower the costs of launching customer payloads; making space more accessible to scientific institutions, universities, and private customers with various budget sizes.
