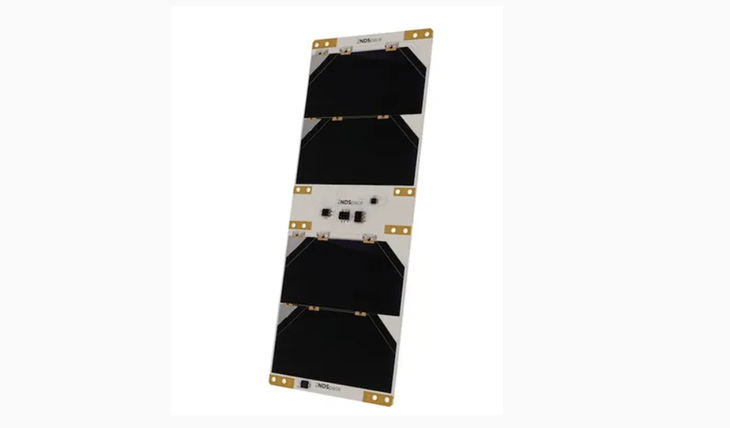

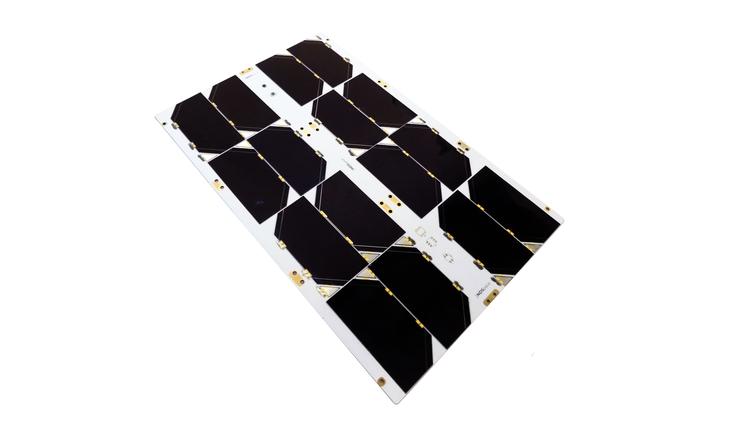

CORE12 - 6U/12U Solar Panel
Overview
2NDSpace body mounted solar panels derive from a decade of experience of the team in the design of space systems and successful nanosatellites missions. CORE body mounted panels offer high versatility with multiple additional options such as magnetorquer, RBF and umbilical interfaces and custom cut outs. Innovative designs include ZERO-residual dipole layout and improved thermal dissipation system.
Max Power 20W - 20 V @ 1 A
Thermal sensor and Coarse sun sensor integrated
Zero-residual dipole design
Improved thermal dissipation technology
Embedded magnetorquer option
Additional IMU option
RBF and Umbilical optional
Looking for more information or want to purchase?
Overview
- Name
- CORE12 - 6U/12U Solar Panel
- Vendor
- 2NDSPACE
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- CubeSat
- Heritage
- N/A
- Average Lead Time
- 2 to 4 months
Vendor Details
- Name
- 2NDSPACE
- Website
- https://www.2ndspace.eu/
- Founded
- 2023
- Summary
- 2NDSPACE is a New Space company that offers innovative nano-satellites platforms, cubesat components and separation systems, focusing on short lead times and tailor-made approach.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- CubeSat
- Vendor
- 2NDSPACE
- Dry Mass
- 0.28 kg
- Average Power
- N/A
- Heritage
- N/A
- Status
- In Production
