Compact S-Band TT&C Antenna

Vendor profile

Overview

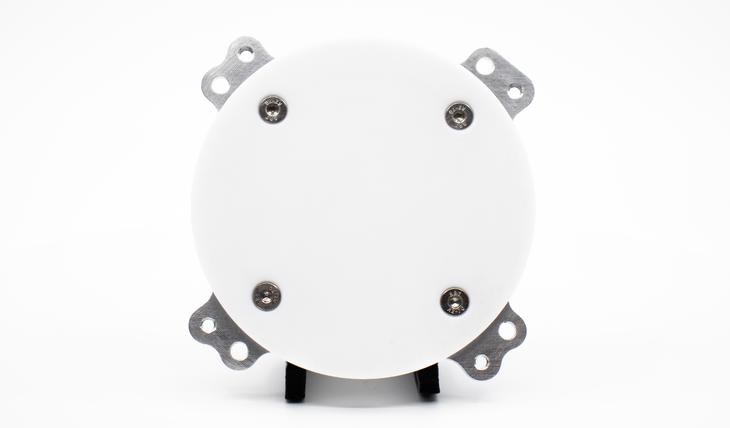

This Compact S-Band antenna is our latest antenna generation for telemetry, tracking & control. It is the optimized compact version of our previous S-Band TT&C Antenna. It differs from its predecessor with a dual-circular-polarization that can be used simultaneously on the dedicated connectors (SMAs or SMPs according to your needs). This S-Band antenna has successfully passed our qualification tests and is now ready to equip your satellites.

This new antenna has been optimized to better communicate anytime, anywhere! Anywaves Compact S-band TT&C antenna features excellent radiation characteristics over a wide frequency band. With a better gain and axial ratio at high elevation angles, you will collect more data, from your satellite or your payload during a pass over your ground station. This antenna brings to you more available and capacitive communication link.

This antenna can withstand harsh thermal environment thanks to a robust design based on our know-how and meca-thermal expertise.

NB : this antenna is compatible with Anywaves Test Cap for S-Band TT&C Antennas

More info: https://anywaves.com/products/compact-s-band-ttc-antenna/

Looking for more information or want to purchase?

Contact now

Overview

Name: Compact S-Band TT&C Antenna
Vendor: Anywaves
Subsystem: Telecom Subsystem
Component Type: Microstrip Antenna
Form Factor: All
Heritage: N/A
Average Lead Time: 3 months

Details

Frequency Band: From 1.98 GHz to 2.29 GHz
Polarization: Left and/or Right Hand Circular Polarization

Vendor Details

Name: Anywaves
Website: https://anywaves.com/
Founded: 2017
Summary: Anywaves is a France-based satellite antenna solutions provider. It is one of the leading providers of innovative antenna solutions in the space industry. Anywaves specializes in the design, development, and manufacturing of high-performance antennas that excel in the demanding space environment. Located in Toulouse, Europe’s space capital, Anywaves provides high-quality off-the-shelf (COTS) and custom space antennas worldwide. The company's expertise and technical know-how merge Radio Frequency and Thermal Mechanical experience to develop state-of-the-art and compact antennas. Anywaves uses premium materials and technologies that guarantee optimal performance throughout the space mission. Committed to excellence, Anywaves works closely with its clients to understand their unique requirements and provide tailored solutions that meet their specific needs. They offer a range of COTS antennas perfectly designed according to space standards as an answer to the satellite constellations market’s needs, such as TT&C, Data Downlink, and GNSS. In addition, Anywaves is also able to cover spatial missions' specific needs by developing custom antennas: launchers antennas, high gain antennas (payload telemetry, inter-satellite link, telecommunications, etc.), wide band antennas (spectrum surveillance, GNSS, LEO PNT, etc.) or any other type of antennas and applications (integrated antennas, active antennas, etc.), as per the customer requirements. Recognized for its technical excellence by leading entities such as Airbus, Thales, and Maxar, Anywaves is committed to delivering unparalleled performance, reliability, and production efficiency. The company is distinguished by its EN 9100 certification, demonstrating its adherence to rigorous quality and performance standards in the aerospace, defense, and space sectors.
