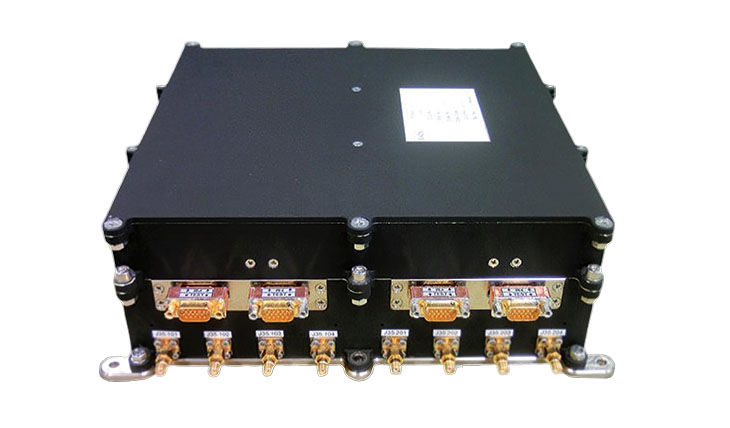

Clock Monitoring and Control Unit

Search
Generic filters
Description

The CMCU is a high-performance 10.23 MHz master clock generation unit for satellite navigation systems. Two frequency synthesizers can select independently between two input 9.99 to 10.01 MHz Atomic Clock frequency references as a basis for the master clock generation. One of the two synthesizer outputs is selected to provide the master clock for the payload and is distributed to up to four identical outputs. The output signal of the second synthesizer provides a hot redundant alternative for the master clock with seamless switching (no distortion of the output signal). A phase meter monitors the output phase of the active synthesizer against the hot redundant one.

Maximum reliability is achieved through a design without microcontroller. The TM TC interface is implemented as hard wired logic and can be addressed by serial and high-level commands. A phase synchronous output switching between active and redundant synthesizer is available. Optional features like parameter-based clock drift compensation or synthesizer adaptation to source characteristics can be implemented.

The CMCU can be operated with rubidium, passive hydrogen maser and caesium clocks to form a complete timing subsystem. The CMCU in the Galileo configuration operates with passive hydrogen maser and rubidium clocks



Datasheet

Airbus – Clock Monitoring and Control Unit

Overview
NameClock Monitoring and Control Unit
ManufacturerAirbus
SubsystemCDH
ClassificationAtomic Clock
Form FactorSmallSat
TRL9
HeritageYes
Vendor Overview
Vendor NameAirbus
Vendor Websitehttps://spaceequipment.airbusdefenceandspace.com/
Vendor LocationsFrance, Germany, Netherlands, Spain, United Kingdom, United States
Vendor Request for Information Form
Name *

Email *

Country *

Would you like suggestions about similar products/services from other suppliers?

Inquiry Description *

SPECIFICATIONS
SubsystemCDH
ClassificationAtomic Clock
Form FactorSmallSat
VendorAirbus
HeritageYes
Mass5.2 kg
Nominal Power21.0 W
