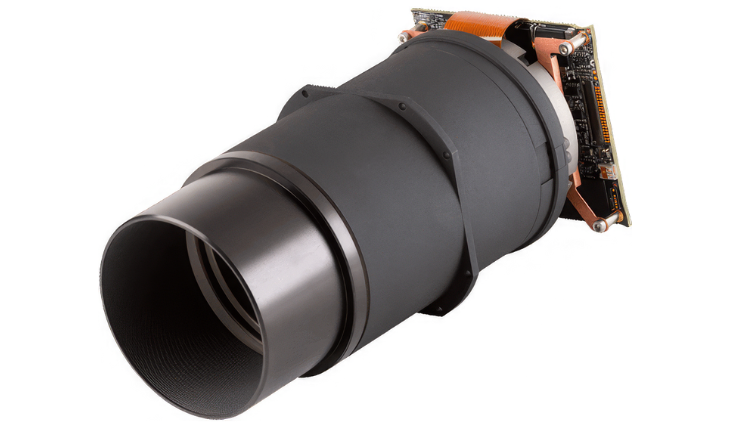

Chameleon SWIR
Overview
The Chameleon SWIR captures images in the short-wave infrared region of the electromagnetic spectrum to provide valuable information in the non-visible spectrum. This imaging technology is a crucial tool in various scientific, industrial, and military contexts, contributing to advancements in Earth and space exploration.
Spectral bands
ā¢ 4 x SWIR Bands (1000ā1750 mm)
Looking for more information or want to purchase?
Overview
- Name
- Chameleon SWIR
- Vendor
- Dragonfly Aerospace
- Subsystem
- Payload Subsystem
- Component Type
- Camera/Imager
- Form Factor
- CubeSat
- Heritage
- N/A
Details
- TRL
- 6
- Spatial resolution (GSD) at 500 km
- RAW 8.7 m
- Swath at 500 km
- 11.2 km
- Physical Size
- 2.5U
- Data Format
- 8-bit or 10-bit
- Operating Temperature
- +10Ā°C to +30Ā°C
- Survival Temperature
- -20Ā°C to +55Ā°C
Vendor Details
- Name
- Dragonfly Aerospace
- Website
- https://dragonflyaerospace.com/
- Founded
- 2020
- Summary
- Dragonfly Aerospace envisions a future in which our small, high-performance imaging satellites and payloads enable large imaging constellations that provide persistent views of the Earth in a variety of spectrums, providing unprecedented business intelligence and improving people's lives all over the world. Dragonfly Aerospace satellites and payloads are built on a 25-year legacy of components and design principles that date back to the first South African microsatellite, SUNSAT, which was launched in 1999. Since South Africa's entry into the space race, members of our team have worked on every microsatellite space mission.
Vendor Request for Information Form
Specifications
- Subsystem
- Payload Subsystem
- Component Type
- Camera/Imager
- Form Factor
- CubeSat
- Vendor
- Dragonfly Aerospace
- Dry Mass
- 1.6 kg
- Average Power
- 7.0 W
- Heritage
- N/A
- Status
- In Production
