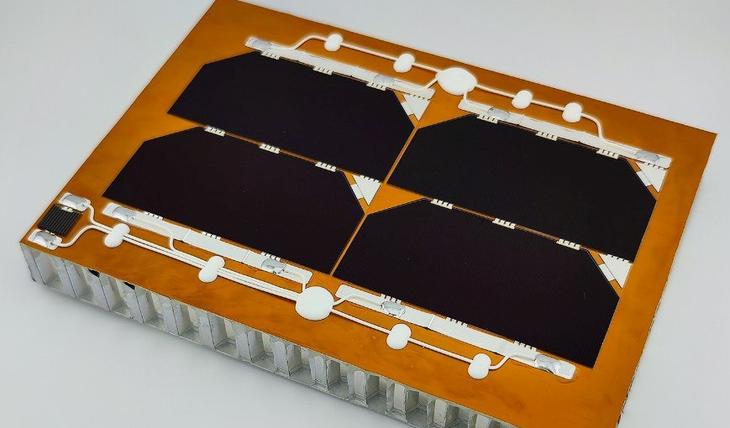

CAVU Solar Panels
Overview
CAVU Solar Panels are engineered to provide dependable, high-efficiency power for spacecraft operating in the most challenging space environments. Each panel incorporates triple-junction GaAs solar cells with efficiency options of 30% or 32%, optimizing power output and minimizing the panel's footprint. Built with CFRP (carbon fiber reinforced polymer) skins and aluminum honeycomb cores, CAVU panels are lightweight yet highly durable, tailored for the unique demands of both LEO and GEO missions.
Looking for more information or want to purchase?
Overview
- Name
- CAVU Solar Panels
- Vendor
- CAVU AEROSPACE
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- All
- Heritage
- Yes
Details
- Array Configuration
- 1 to 3 Wings
- Cell Efficiency
- 30% and 32%
- Mass Ratio Power
- 149 W/kg
- Maximum Power Output
- 960 W
- Max Operating Temperature
- +110 C
- Mechanical Strength
- 15 grms
- Min Operating Temperature
- -90 C
- Solar Cell Types
- 30% & 32% Triple-Junction GaAs Cells
- Surface Density
- 3.4 kg/m²
- TRL
- 9
Vendor Details
- Name
- CAVU AEROSPACE
- Website
- https://CavuAerospace.uk/
- Founded
- 2002
- Summary
- CAVU AEROSPACE is a British manufacturer of satellite & Launch vehicles components. Core Business: On Board Computers Based in Scotland, Stirling University Innovation park. Since 2002 in Aviation & 2017 in Space
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Solar Panel
- Form Factor
- All
- Vendor
- CAVU AEROSPACE
- Dry Mass
- N/A
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
