BT-6
Overview

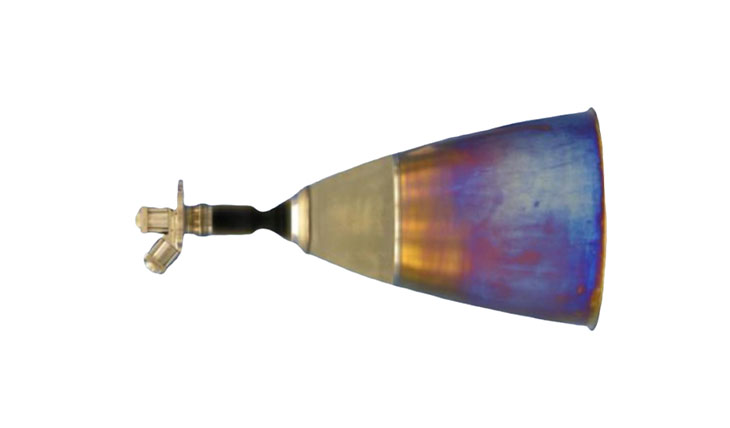

The BT-6 is a 21.5N hydrazine / NTO bipropellant thruster.
IHI Aerospace has manufactured and delivered over 200 bipropellant thrusters for spacecraft since the start of development in the 1980s. We have developed 4SON thruster and 22N thruster propelled by hydrazine and MON3 for geostationary satellites in 2001. The high-performance 450N thruster has been widely used by US satellite manufacturers. IHI Aerospace delivered its first bipropellant thruster, the 1700N N2H4/MON apogee engine, in the 1980s and remains at the forefront of apogee engine production.
The 490N and 120N thrusters were developed with MMH and MON as fuel for the HTV. These bipropellant thrusters are stable over a wide operational range and are less expensive than imported thrusters.
Specifications:
Thrust: 21.5 N
Isp: 295 sec
Propellant: Hydrazine/ NTO
Inlet Pressure: 1.69 MPa
Propellant Throughput: 583 kg
Looking for more information or want to purchase?
Overview
- Name
- BT-6
- Vendor
- IHI Aerospace
- Subsystem
- Propulsion Subsystem
- Component Type
- Bipropellant Thruster
- Form Factor
- SmallSat
- Heritage
- Yes
Vendor Details
- Name
- IHI Aerospace
- Website
- https://www.ihi.co.jp/
- Founded
- 2000
Vendor Request for Information Form
Specifications
- Subsystem
- Propulsion Subsystem
- Component Type
- Bipropellant Thruster
- Form Factor
- SmallSat
- Vendor
- IHI Aerospace
- Dry Mass
- N/A
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
