BIT-3 CubeSat System

Generic filters

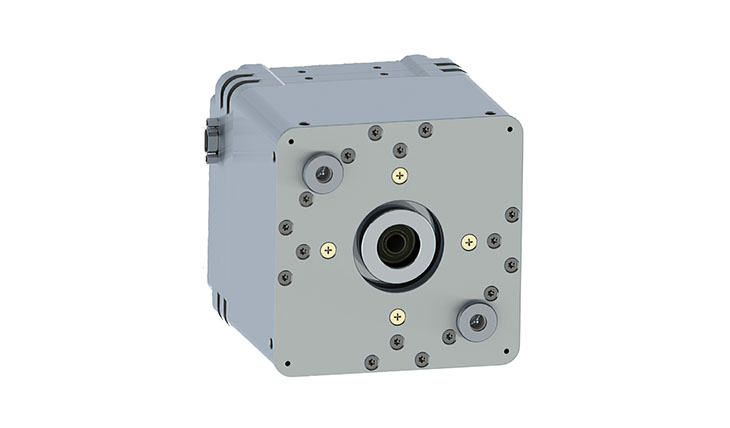

Busek’s BIT-3 RF ion thruster is a mission enabling, iodine-fueled ion propulsion system scheduled for launch on two deep-space CubeSat missions aboard NASA’s Space Launch System rocket in 2020. The 56-80W input propulsion system utilizes a 2.5cm diameter grid RF ion thruster (BIT-3) and a micro RF cathode (BRFC-1) as the neutralizer. The thruster’s unprecedented performance produces thrust up to 1.25mN and specific impulse up to 2,300 seconds. Performance results were verified with xenon and iodine propellant using a highly accurate torsional thrust stand. As an optional add-on, Busek has developed an innovative thruster gimbal capable of desaturating reaction wheels as part of the Attitude Control System (ACS).

The BIT-3 uses an inductively coupled plasma (ICP) discharge to eliminate the need for an internal hot cathode and increase overall lifetime. Thruster life is dominated by grid erosion, which by simulation exceeds 20,000 hours. The most unique feature of BIT-3 is its compatibility with iodine propellant, a demonstrated drop-in replacement for xenon in terms of thrust and Isp performance. Iodine stores as a dense solid (>2x storage density than xenon) and eliminates the need for high-pressure tanks.

Advances in the BIT-3 thruster and BRFC-1 neutralizer are complemented by major breakthroughs in the flight electronics. The BIT-3 power processing unit (PPU) features a ~90% efficient RF power supply with radiation-tolerant components. The state-of-the-art electronics package is highly efficient and compact.



Busek – BIT-3 CubeSat System

NameBIT-3 CubeSat System
ClassificationElectric Propulsion System
Form FactorCubeSat
Vendor Overview
Vendor NameBusek
Vendor Website
Vendor LocationUnited States
Vendor Request for Information Form

    Name *

    Email *

    Country *

    Would you like suggestions about similar products/services from other suppliers?

    Inquiry Description *

    ClassificationElectric Propulsion System
    Form FactorCubeSat
    Mass1.4 kg
    Nominal Power68.0 W
