Description

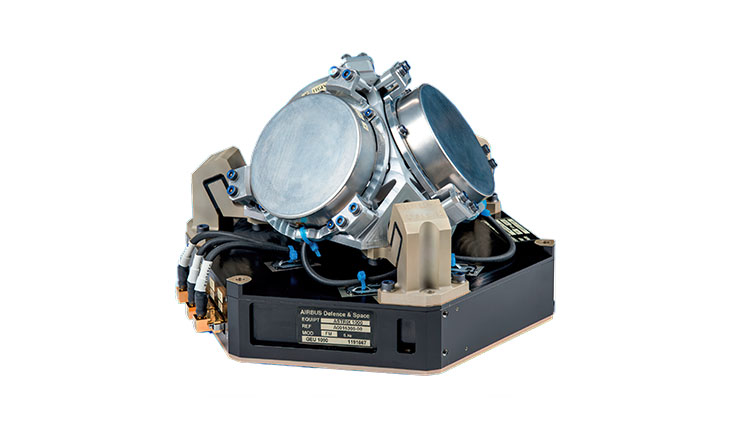

Astrix 1000 provides the satellite AOCS with a three-axis measurement of the rotation with a very high reliability level, adapted to 15 years GEO mission in continuous operation. One compact box implements three gyros oriented on the three faces of a corner cube, and their relevant electronics. The use of 2 Astrix 1000 offers very simple and reliable redundancy architecture.

It is proposed as an option with 3 additional accelerometers as a full navigation capability, for deep space missions. Designed to operate within the radiation worst case environment, compatible with the environment of 15 years lifetime GEO Telecom missions. The EEE, opto-electronics and opto components are fully compliant to HiRel Telecom satellite standard (ECSS-QST-60 C class 1 or equivalent).

One compact box implements three gyros oriented on the three faces of a corner cube, and their relevant electronics. The use of 2 Astrix 1000 offers a very simple and reliable redundancy architecture.

Optional accelerometers can be added to provide a full navigation capability for deep space missions. The EEE, opto-electronics and opto components are fully compliant to HiRel Telecom satellite standard (ECSS-Q-ST-60C class 1 or equivalent).



Datasheet

Airbus – Astrix 1090

Overview
NameAstrix 1090
ManufacturerAirbus
SubsystemACDS
ClassificationIMU/IRU
Form FactorSmallSat
TRL9
HeritageYes
Vendor Overview
Vendor NameAirbus
Vendor Websitehttps://spaceequipment.airbusdefenceandspace.com/
Vendor LocationsFrance, Germany, Netherlands, Spain, United Kingdom, United States
Vendor Request for Information Form
Name *

Email *

Country *

Would you like suggestions about similar products/services from other suppliers?

Inquiry Description *

SPECIFICATIONS
SubsystemACDS
ClassificationIMU/IRU
Form FactorSmallSat
VendorAirbus
HeritageYes
Mass4.5 kg
Nominal Power13.5 W
