50Whr High Energy Density LiPo Battery Array
Overview

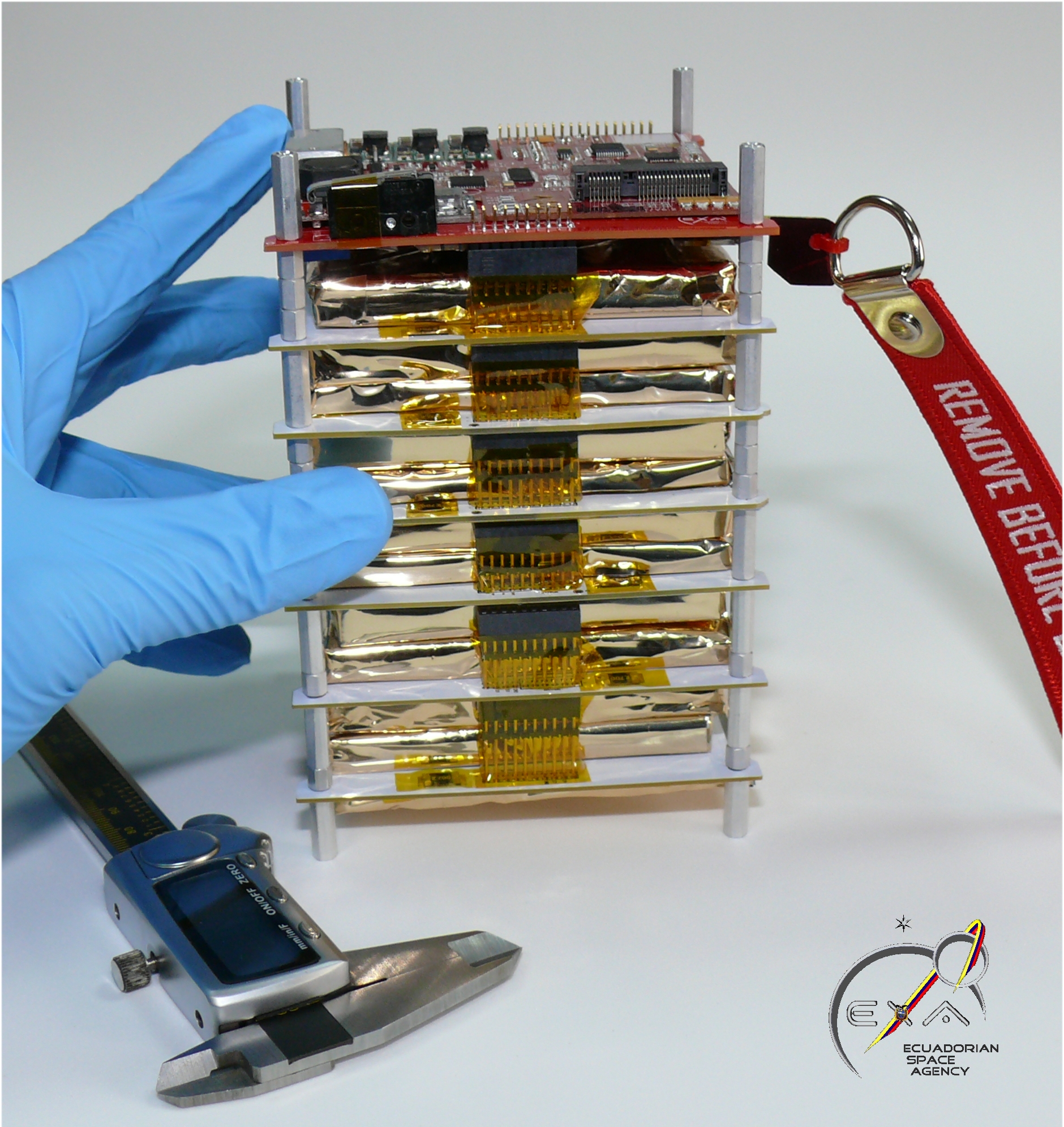

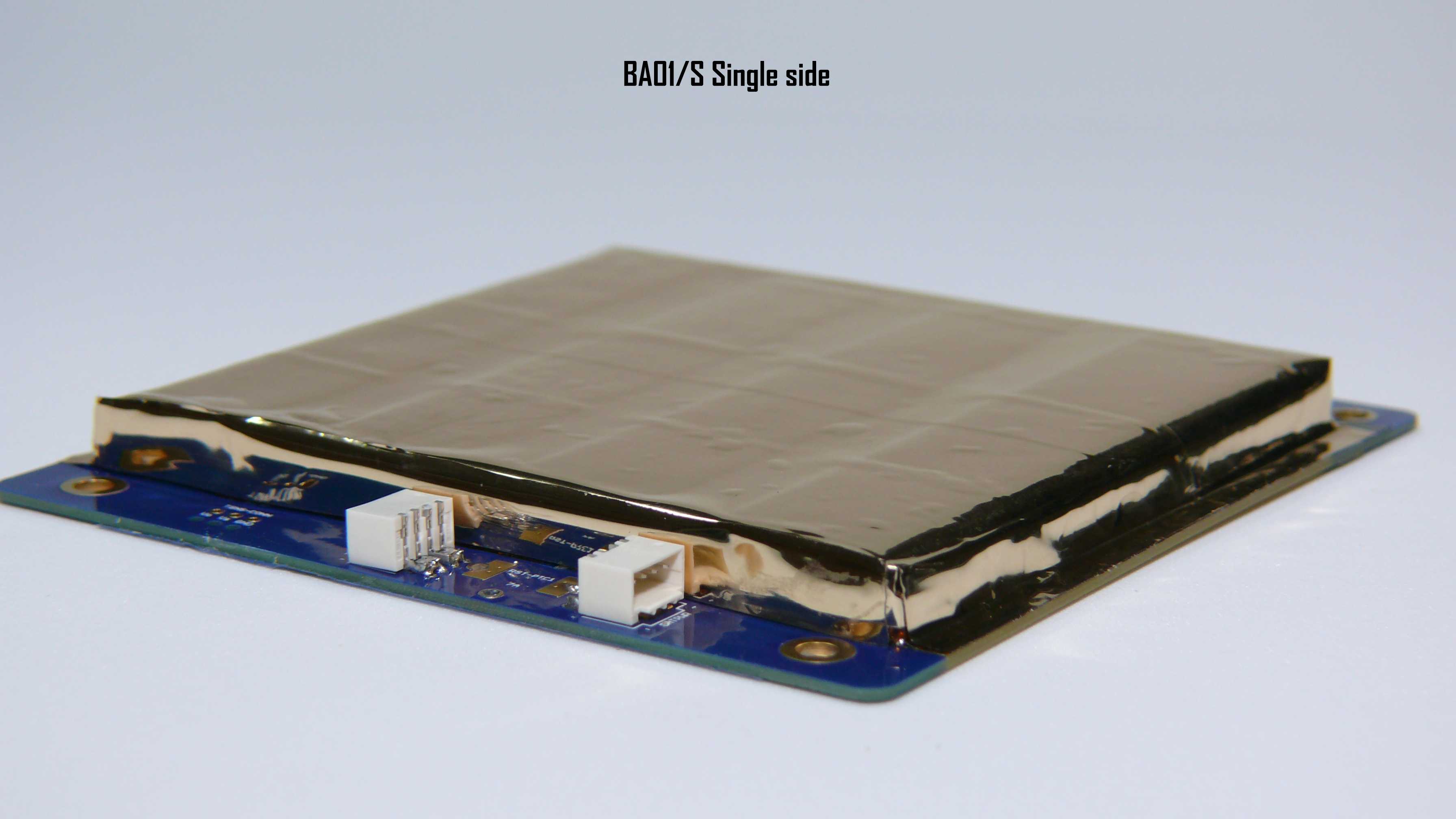

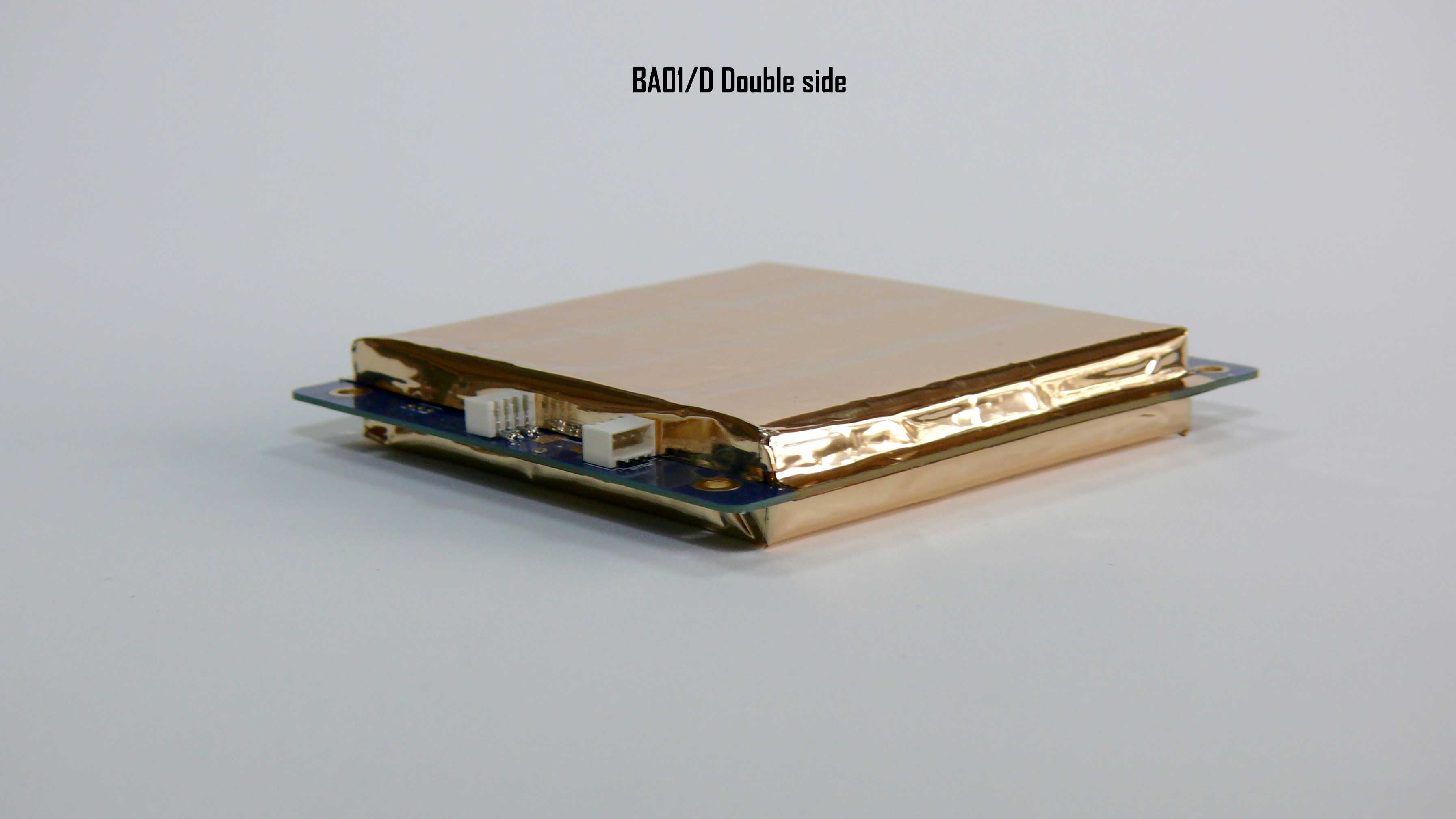

As thin as 7 millimetres thick, the EXA BA0x High Energy Density Battery Array is a family of power store/delivery devices designed to provide the highest energy capacity and redundancy: From a minimum of 22.2Whr to a maximum of 44.4Whr per bank. For missions like 1U Cubesats, the BA0x enables your system to perform longer and better and pack even more power than a 3U configuration, the double-sided arrays are user-configurable to output 3.7V or 7.4V. All our batteries are fully customizable to your mission’s need in terms of output, cable, connectors or interfaces and options are available as integrated Carbon Nanotubes Thermal Transfer Bus (CN/TTB) shield which allows missions to reuse the spacecraft self-generated heat, integrated MT01 Magnetorquer and integrated thermal sensor.
Looking for more information or want to purchase?
Overview
- Name
- 50Whr High Energy Density LiPo Battery Array
- Vendor
- Ecuadorian Space Agency
- Subsystem
- Power Subsystem
- Component Type
- Primary Battery
- Form Factor
- CubeSat
- Heritage
- Yes
- Average Cost
- $9,350 to $11,350 USD
- Fiscal Year
- 2022
- Average Lead Time
- 0 to 1 months
Vendor Details
- Name
- Ecuadorian Space Agency
- Website
- http://exa.ec/index-en.html
- Founded
- 2007
- Summary
- EXA is an aerospace research and development institution that, among other things, designs and builds extreme hardware for CubeSats, with more than 7 years of record-setting flight heritage in extreme conditions. EXA’s technology is singular, original, simple, solid and dependable and allows CubeSat developers to use COTS components in order to break the limitations of budget and power typical of the cubesat form factor, the deployable hardware is based over EXA’s unique Active Artificial Muscle technology for a dependable, proven and anti-whiplash deploy of challenging mechanical elements. Flight heritage from 10+ missions backs their technology which is currently in use in European, Asian and Latina merican spacecrafts, and in the challenging U.S. market.
Vendor Request for Information Form
Specifications
- Subsystem
- Power Subsystem
- Component Type
- Primary Battery
- Form Factor
- CubeSat
- Vendor
- Ecuadorian Space Agency
- Dry Mass
- 0.21 kg
- Average Power
- N/A
- Heritage
- Yes
- Status
- In Production
