30% Efficiency Triple Junction GaAs Solar Cell

Name: 30% Efficiency Triple Junction GaAs Solar Cell
Brand: CAVU AEROSPACE

Vendor profile

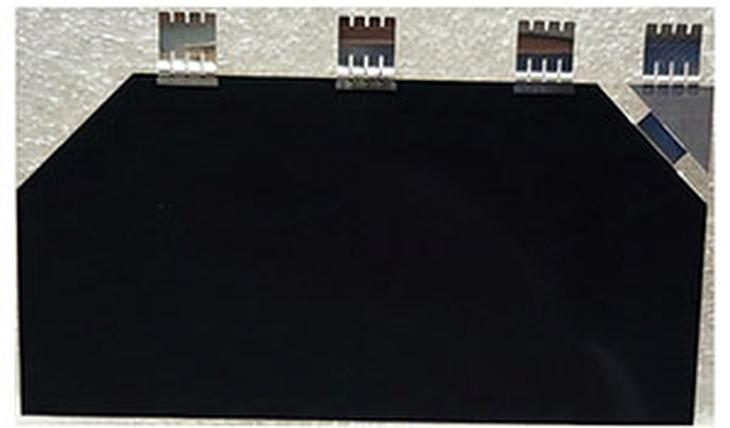

30% Efficiency Triple Junction GaAs Solar Cell image

Overview

The 30% Efficiency Triple Junction GaAs Solar Cell offers high power output for space applications. With a 30% efficiency at the beginning of life and robust radiation tolerance, it’s ideal for satellites and spacecraft operating in harsh environments.

Looking for more information or want to purchase?

Contact now

Overview

Name: 30% Efficiency Triple Junction GaAs Solar Cell
Vendor: CAVU AEROSPACE
Subsystem: Power Subsystem
Component Type: Solar Cell
Form Factor: All
Heritage: Yes

Details

Cell Type: GaInP/InGaAs/Ge Triple Junction
Current (Jsc): 17.6 mA/cm²
Dimensions: 80.15x40.15 mm
Efficiency (BOL): %30
Power (Pmax): 1.31 W/cm²
Radiation Tolerance: 1×10¹⁵ e/cm²
Shadow Protection: Integrated bypass diode
Voltage (Voc): 2768 mV
Weight: 3.6 g

Vendor Details

Name: CAVU AEROSPACE
Website: https://CavuAerospace.uk/
Founded: 2017
Summary: CAVU is a pioneering company started 2017 in Space & Aviation, based in Scotland, Stirling University Innovation park. We are manufacturer of satellite components, Ground Stations, Communication systems, Satellite Cameras, Power Management (EPS) systems, Payload & Data Acquisition devices, and Onboard Computers (OBC). We also offer Satellite Mission Design Services. Our customized products and services cater to space mission design, CubSats, Nano and Pico satellites, and telemetry and condition monitoring solutions. As a leading certified MRO, we are supplier of aircraft parts and services, concentrated on Avionics.
